Home > Products > Switches > Rocker Switches > D502J12B215PQF

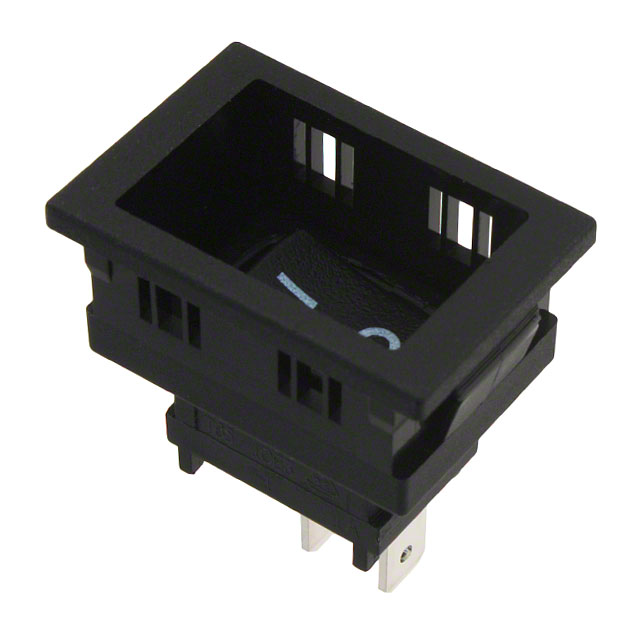

D502J12B215PQF

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D502J12B215PQF with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	D502J12B215PQF
Manufacturer	C&K
Description	SWITCH ROCKER SPST 10A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4406 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	D502J12B215PQF	Manufacturer	C&K
Description	SWITCH ROCKER SPST 10A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4406 pcs	Data sheet	D Series Mini Rocker Switches
Category	Switches	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.187" (4.7mm)	Switch Function	On-Off
Series	D	Panel Cutout Dimensions	Rectangular - 27.13mm x 19.20mm
Packaging	Bulk	Other Names	*D502J12B215PQF CKN10097 D502J12B215PQF-ND
Operating Temperature	-30°C ~ 65°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	Guard	Electrical Life	10,000 Cycles
Detailed Description	Rocker Switch SPST 10A (AC) 125V Panel Mount, Snap-In	Current Rating	10A (AC)
Color - Actuator/Cap	Black	Circuit	SPST
Actuator Type	Concave (Curved)	Actuator Marking	O -
