Home > Products > Switches > Rocker Switches > CN202J3AS215Q8

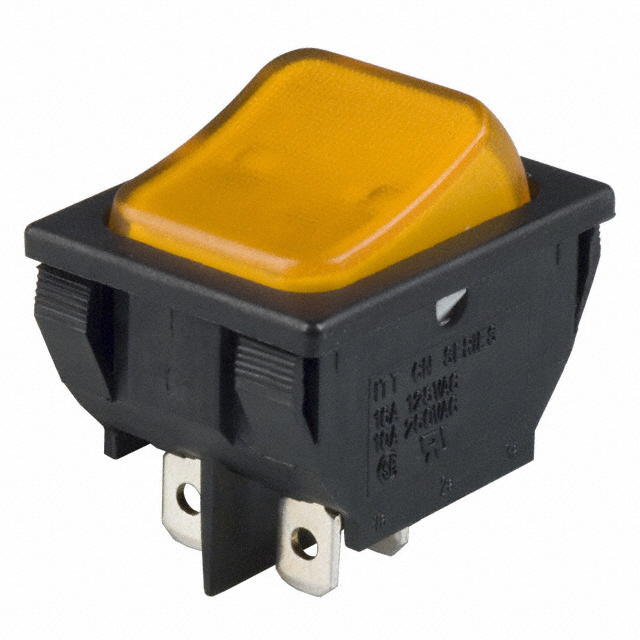

CN202J3AS215Q8

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CN202J3AS215Q8 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	CN202J3AS215Q8
Manufacturer	C&K
Description	SWITCH ROCKER DPST 16A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 55091 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$1.07	$1.023	$0.976	$0.929	$0.883
	$0.86	$0.813	$0.72	$0.697

Product parameter
Data sheet

Product parameter

Part Number	CN202J3AS215Q8	Manufacturer	C&K
Description	SWITCH ROCKER DPST 16A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	55091 pcs	Data sheet	CN Series Double Pole Power Rocker Datasheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.187" (4.7mm)	Switch Function	On-Off
Series	CN	Panel Cutout Dimensions	Rectangular - 30.40mm x 22.20mm
Packaging	Bulk	Other Names	*CN202J3AS215Q8 401-1380 KSC541GR0HS
Operating Temperature	-20°C ~ 85°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	-
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	250 VAC
Illumination Type, Color	Neon, Amber	Features	-
Electrical Life	10,000 Cycles	Detailed Description	Rocker Switch DPST 16A (AC) 125V Panel Mount, Snap-In
Current Rating	16A (AC)	Color - Actuator/Cap	Amber
Circuit	DPST	Actuator Type	Concave (Curved) - Illuminated
Actuator Marking	No Marking
