Home > Products > Switches > Snap Action, Limit Switches > ASKHF3J04AY

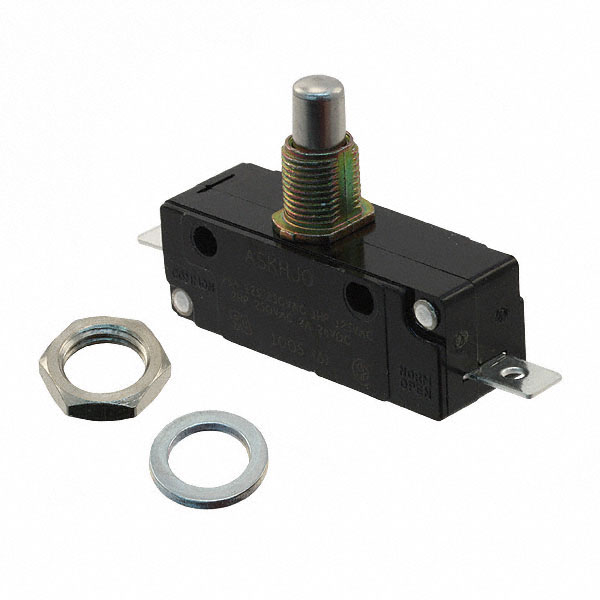

ASKHF3J04AY

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ASKHF3J04AY with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ASKHF3J04AY
Manufacturer	C&K
Description	SWITCH SNAP ACT SPST-NO 25A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 23968 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$2.844	$2.276	$2.163	$2.106
	$1.821	$1.707	$1.622	$1.565

Product parameter
Data sheet

Product parameter

Part Number	ASKHF3J04AY	Manufacturer	C&K
Description	SWITCH SNAP ACT SPST-NO 25A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	23968 pcs	Data sheet	A Series Gen Purpose Snap Acting Datasheet
Category	Switches	Voltage Rating - DC	24V
Voltage Rating - AC	125V	Termination Style	Quick Connect - 0.250" (6.3mm)
Switch Function	Off-Mom	Series	A
Release Force	85gf	Pretravel	0.050" (1.27mm)
Packaging	Bulk	Overtravel	0.187" (4.75mm)
Other Names	*ASKHF3J04AY ASKHF3J04AY-ND CKN10093	Operating Temperature	-55°C ~ 85°C
Operating Position	-	Operating Force	567gf
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	-	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Features	-	Electrical Life	75,000 Cycles
Differential Travel	-	Current Rating	25A (AC), 2A (DC)
Circuit	SPST-NO	Actuator Type	Overtravel Plunger
