Home > Products > Switches > Keylock Switches > A115132Y2NZNQ

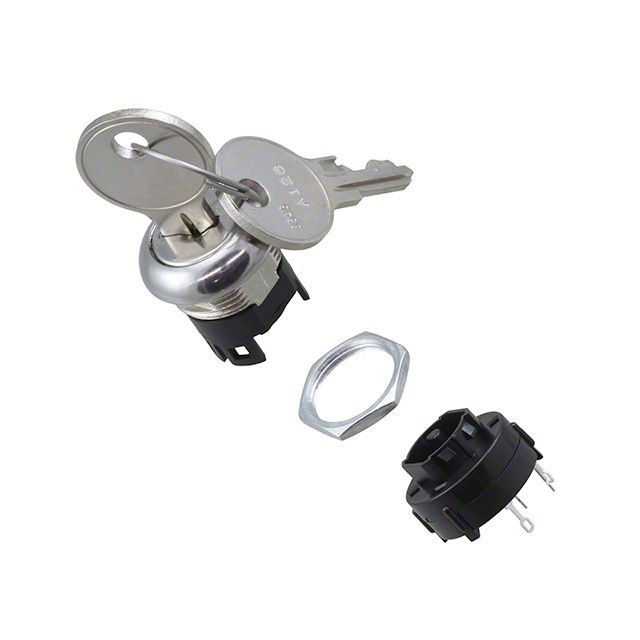

A115132Y2NZNQ

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy A115132Y2NZNQ with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	A115132Y2NZNQ
Manufacturer	C&K
Description	SWITCH KEYLK 3POS SP3T 2.5A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4991 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$7.074

Product parameter
Data sheet

Product parameter

Part Number	A115132Y2NZNQ	Manufacturer	C&K
Description	SWITCH KEYLK 3POS SP3T 2.5A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4991 pcs	Data sheet	A Series 4/5 Tumbler Switchlocks Datasheet
Category	Switches	Voltage Rating - DC	125V
Voltage Rating - AC	125V	Termination Style	Solder Lug
Switch Function	On-On-On	Series	A
Panel Cutout Dimensions	Circular - 19.30mm Dia	Operating Temperature	-30°C ~ 85°C
Number of Positions	3	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	-
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Key Removable Positions	1 only	Features	Antistatic
Electrical Life	15,000 Cycles	Detailed Description	Keylock Switch 3 Position SP3T 2.5A (AC), 350mA (DC) 125VAC 125VDC Panel Mount
Depth Behind Flange	36.83mm	Current Rating	2.5A (AC), 350mA (DC)
Contact Timing	Non-Shorting (BBM)	Contact Material	Silver (Ag)
Contact Finish	Silver	Circuit	SP3T
Angle of Throw	45°	Actuator Type	Flat Key
