A10503RNZQ

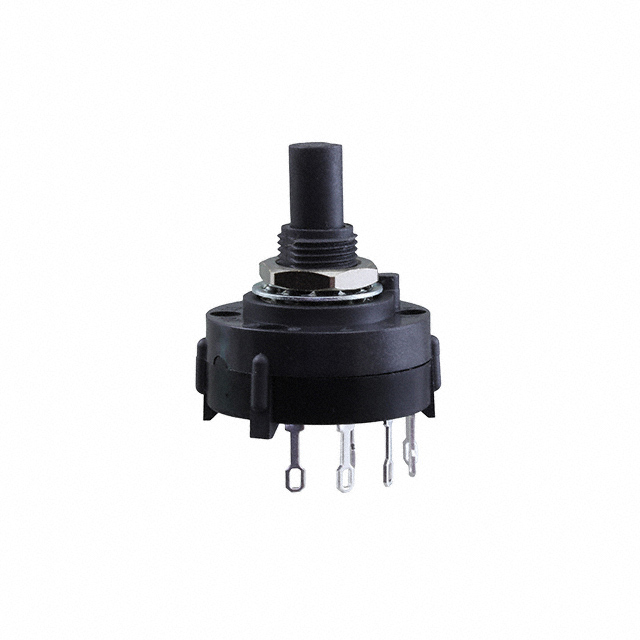

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy A10503RNZQ with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy A10503RNZQ with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | A10503RNZQ |
|---|---|
| Manufacturer | C&K |
| Description | SWITCH ROTARY 5POS 2.5A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.225 | $1.838 | $1.814 | $1.669 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.596 | $1.427 | $1.403 | $1.379 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | A10503RNZQ | Manufacturer | C&K |
|---|---|---|---|
| Description | SWITCH ROTARY 5POS 2.5A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23849 pcs | Data sheet | A Series 1-4 Pole Rotary Datasheet |
| Category | Switches | Voltage Rating - DC | 125V |
| Voltage Rating - AC | 125V | Termination Style | Solder Lug |
| Series | A | Panel Cutout Dimensions | Circular - 9.80mm Dia |
| Other Names | A10503RNZQ-ND CKN11780 Q5682876 |
Operating Force | - |
| Number of Positions | 5 | Number of Poles per Deck | 1 |
| Number of Decks | 1 | Mounting Type | Panel Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Index Stops | Fixed |
| Features | - | Detailed Description | Rotary Switch 5 Position SP5T 2.5A (AC), 350mA (DC) 125VAC Panel Mount |
| Depth Behind Panel | 20.83mm | Current Rating | 2.5A (AC), 350mA (DC) |
| Contact Timing | Non-Shorting (BBM) | Contact Material | Silver (Ag) |
| Contact Finish | Silver | Circuit per Deck | SP5T |
| Angle of Throw | 30° | Actuator Type | Flatted (6.35mm Dia) |
| Actuator Length | 9.53mm |
