Home > Products > Switches > Toggle Switches > 7401P3D9CQE

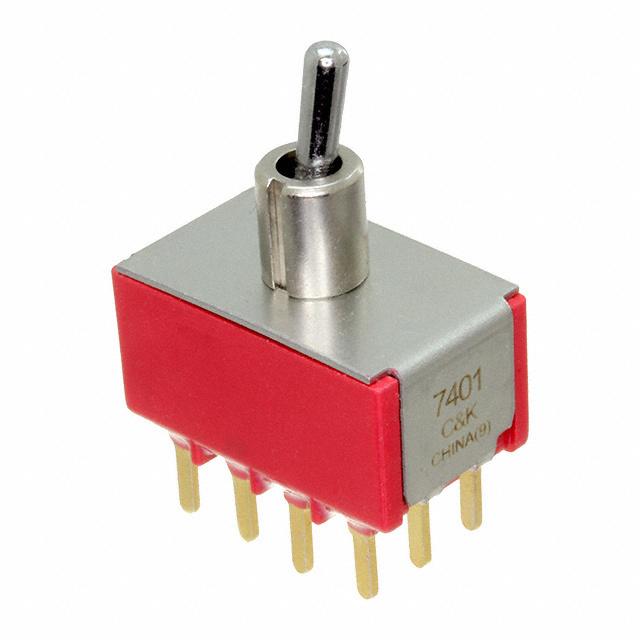

7401P3D9CQE

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 7401P3D9CQE with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	7401P3D9CQE
Manufacturer	C&K
Description	SWITCH TOGGLE 4PDT 5A 120V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	50 pcs	100 pcs	250 pcs
~~In Stock~~ 4420 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs
	$8.869	$8.349	$7.827
	$7.305	$7.045	$6.784

Product parameter
Data sheet

Product parameter

Part Number	7401P3D9CQE	Manufacturer	C&K
Description	SWITCH TOGGLE 4PDT 5A 120V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4420 pcs	Data sheet	7000 Series Mini Toggle Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	120V	Termination Style	PC Pin
Switch Function	On-On	Series	7000
Panel Cutout Dimensions	-	Packaging	Bulk
Other Names	7401P3D9CQE-ND CKN11720	Operating Temperature	-30°C ~ 85°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Epoxy Sealed Terminals	Electrical Life	100,000 Cycles
Detailed Description	Toggle Switch 4PDT Through Hole	Current Rating	5A (AC/DC)
Circuit	4PDT	Bushing Thread	Unthreaded
Actuator Type	Flat Anti-Rotation	Actuator Material	Brass, Chrome Plated
Actuator Length	13.21mm
