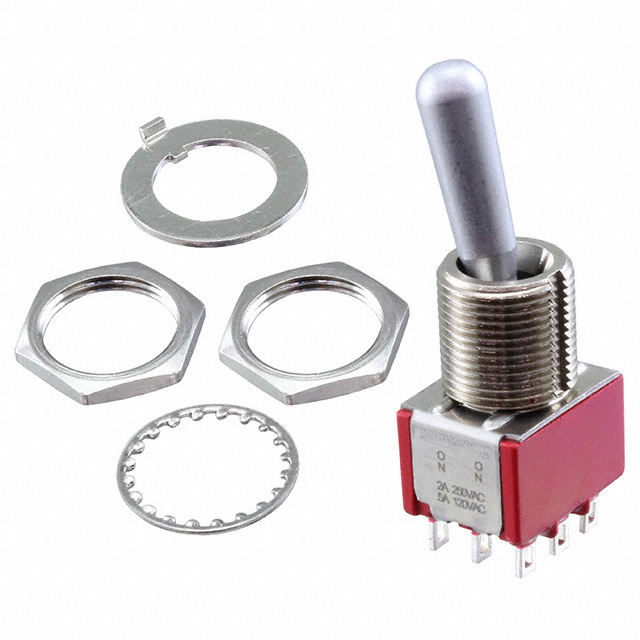

7301TZQES
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 7301TZQES with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 7301TZQES with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 7301TZQES |
|---|---|
| Manufacturer | C&K |
| Description | SWITCH TOGGLE 3PDT 5A 120V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $6.786 | $6.42 | $6.237 | $6.053 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $5.87 | $5.687 | $4.769 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 7301TZQES | Manufacturer | C&K |
|---|---|---|---|
| Description | SWITCH TOGGLE 3PDT 5A 120V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6742 pcs | Data sheet | 7000 Series Mini Toggle Datasheet |
| Category | Switches | Voltage Rating - DC | 28V |
| Voltage Rating - AC | 120V | Termination Style | Solder Lug |
| Switch Function | On-On | Series | 7000 |
| Panel Cutout Dimensions | Circular - 11.91mm Dia | Packaging | Bulk |
| Other Names | 7301TZQES-ND CKN11703 |
Operating Temperature | -30°C ~ 85°C |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Illumination | Non-Illuminated |
| Features | Satin Chrome Actuator | Electrical Life | 100,000 Cycles |
| Detailed Description | Toggle Switch 3PDT Panel Mount | Current Rating | 5A (AC/DC) |
| Circuit | 3PDT | Bushing Thread | 15/32-32 |
| Actuator Type | Standard Round | Actuator Material | Brass |
| Actuator Length | 17.45mm |
