Home > Products > Switches > Toggle Switches > 7301T1CWZQE

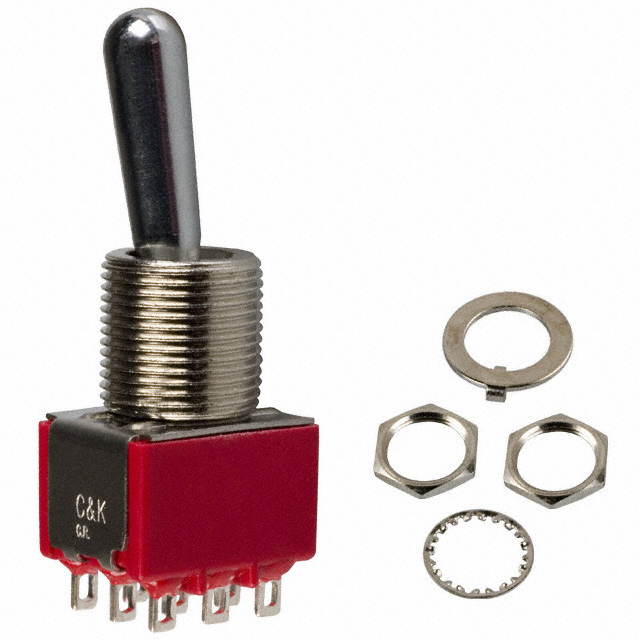

7301T1CWZQE

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 7301T1CWZQE with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	7301T1CWZQE
Manufacturer	C&K
Description	SWITCH TOGGLE 3PDT 5A 120V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 7157 pcs
Reference Price (In US Dollars)	50 pcs
Reference Price (In US Dollars)	$4.366

Product parameter
Data sheet

Product parameter

Part Number	7301T1CWZQE	Manufacturer	C&K
Description	SWITCH TOGGLE 3PDT 5A 120V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7157 pcs	Data sheet	7000 Series Mini Toggle Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	120V	Termination Style	Solder Lug
Switch Function	On-On	Series	7000
Panel Cutout Dimensions	Circular - 11.91mm Dia	Packaging	Bulk
Other Names	7301T1CWZQE-ND CKN11496	Operating Temperature	-30°C ~ 85°C
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP67 - Dust Tight, Waterproof	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Epoxy Sealed Terminals	Electrical Life	100,000 Cycles
Detailed Description	Toggle Switch 3PDT Panel Mount	Current Rating	5A (AC/DC)
Circuit	3PDT	Bushing Thread	15/32-32
Actuator Type	Standard Round	Actuator Material	Brass, Chrome Plated
Actuator Length	12.37mm
