Home > Products > Switches > Rocker Switches > 7301J11ZQE22

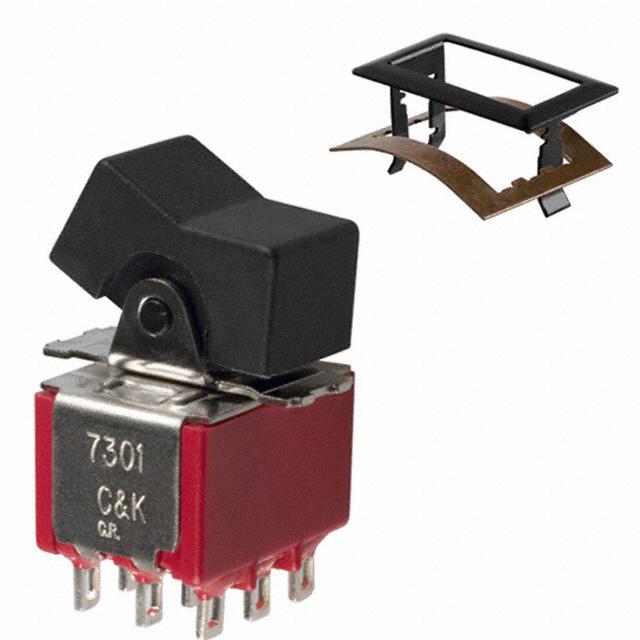

7301J11ZQE22

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 7301J11ZQE22 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	7301J11ZQE22
Manufacturer	C&K
Description	SWITCH ROCKER 3PDT 5A 120V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs
~~In Stock~~ 7297 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$6.224	$5.733	$5.569	$5.406
	$5.242	$4.75	$4.423

Product parameter
Data sheet

Product parameter

Part Number	7301J11ZQE22	Manufacturer	C&K
Description	SWITCH ROCKER 3PDT 5A 120V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7297 pcs	Data sheet	7000 Series Mini Rocker Datasheet Rockers Product Guide
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	120V	Termination Style	Solder Lug
Switch Function	On-On	Series	7000
Panel Cutout Dimensions	Rectangular - 19.05mm x 10.41mm	Packaging	Bulk
Other Names	*7301J11ZQE22 7301J11ZQE22-ND CKN2044	Operating Temperature	-30°C ~ 85°C
Mounting Type	Panel Mount, Snap-In	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	-	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	Epoxy Sealed Terminals	Electrical Life	100,000 Cycles
Detailed Description	Rocker Switch 3PDT 5A (AC/DC) 120V Panel Mount, Snap-In	Current Rating	5A (AC/DC)
Color - Actuator/Cap	Black	Circuit	3PDT
Actuator Type	Concave (Standard V)	Actuator Marking	No Marking
