Home > Products > Switches > Toggle Switches > 7201P3YZQES

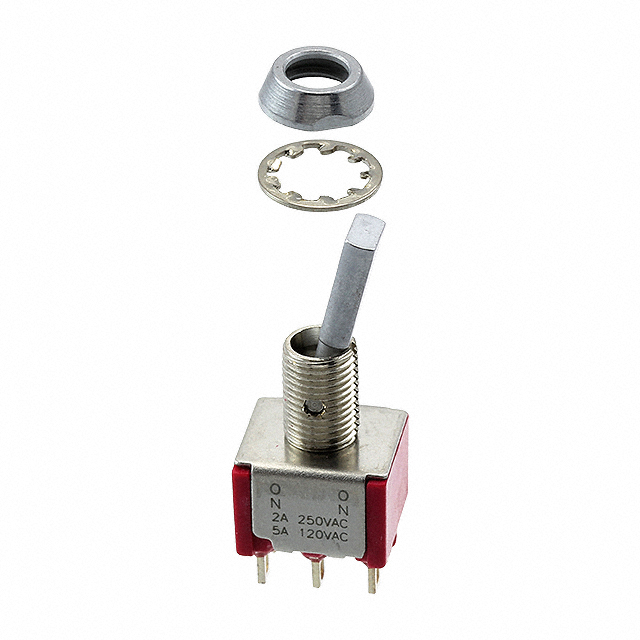

7201P3YZQES

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 7201P3YZQES with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	7201P3YZQES
Manufacturer	C&K
Description	SWITCH TOGGLE DPDT 5A 120V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 7371 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$4.324

Product parameter
Data sheet

Product parameter

Part Number	7201P3YZQES	Manufacturer	C&K
Description	SWITCH TOGGLE DPDT 5A 120V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7371 pcs	Data sheet	7000 Series Mini Toggle Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	120V	Termination Style	Solder Lug
Switch Function	On-On	Series	7000
Panel Cutout Dimensions	Circular - 6.35mm Dia	Packaging	Bulk
Operating Temperature	-30°C ~ 85°C	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	Satin Chrome Actuator
Electrical Life	100,000 Cycles	Detailed Description	Toggle Switch DPDT Panel Mount
Current Rating	5A (AC/DC)	Circuit	DPDT
Bushing Thread	1/4-40	Actuator Type	Flat Anti-Rotation
Actuator Material	Brass	Actuator Length	11.43mm
