Home > Products > Switches > Rocker Switches > 7201J50ZQE3

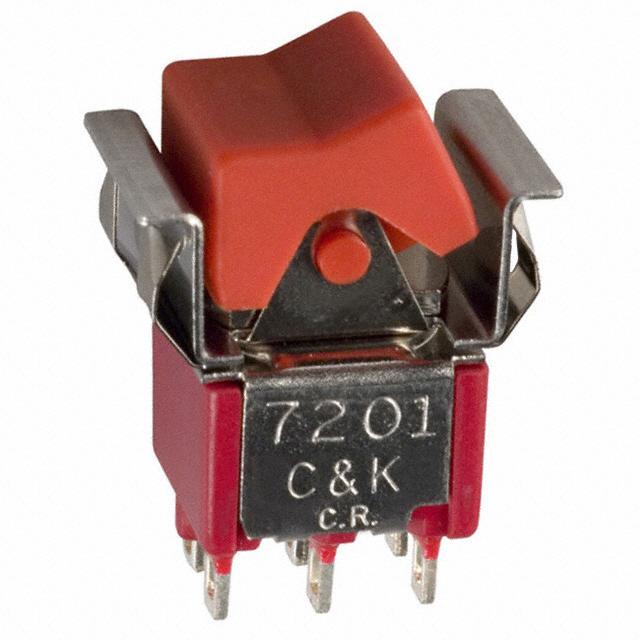

7201J50ZQE3

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 7201J50ZQE3 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	7201J50ZQE3
Manufacturer	C&K
Description	SWITCH ROCKER DPDT 5A 120V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 12870 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$3.753	$3.378	$3.284	$3.19
	$3.096	$3.003	$2.627	$2.487

Product parameter
Data sheet

Product parameter

Part Number	7201J50ZQE3	Manufacturer	C&K
Description	SWITCH ROCKER DPDT 5A 120V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12870 pcs	Data sheet	7000 Series Mini Rocker Datasheet Rockers Product Guide
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	120V	Termination Style	Solder Lug
Switch Function	On-On	Series	7000
Panel Cutout Dimensions	Rectangular - 15.24mm x 12.70mm	Packaging	Bulk
Other Names	*7201J50ZQE3 7201J50ZQE3-ND CKN10180 Q1243138	Operating Temperature	-30°C ~ 85°C
Mounting Type	Panel Mount, Snap-In	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	-	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	Epoxy Sealed Terminals	Electrical Life	100,000 Cycles
Detailed Description	Rocker Switch DPDT 5A (AC/DC) 120V Panel Mount, Snap-In	Current Rating	5A (AC/DC)
Color - Actuator/Cap	Red	Circuit	DPDT
Actuator Type	Concave (Standard V)	Actuator Marking	No Marking
