Home > Products > Switches > Rocker Switches > 7105J2ZQE2

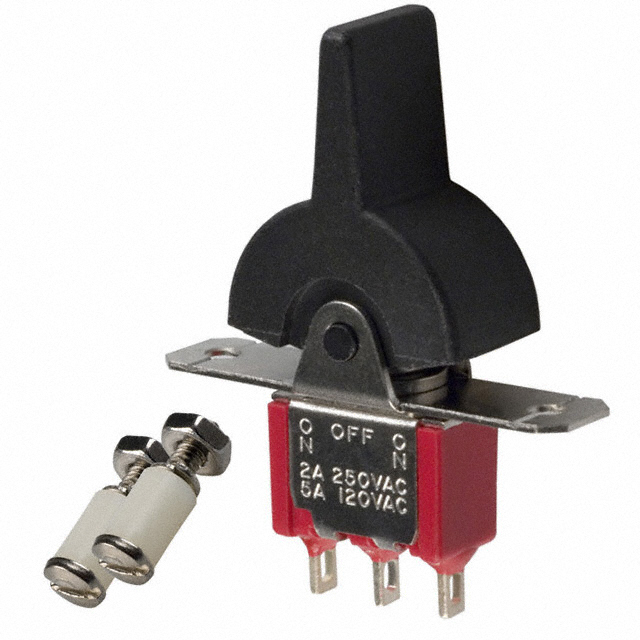

7105J2ZQE2

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 7105J2ZQE2 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	7105J2ZQE2
Manufacturer	C&K
Description	SWITCH ROCKER SPDT 5A 120V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 9305 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$3.796

Product parameter
Data sheet

Product parameter

Part Number	7105J2ZQE2	Manufacturer	C&K
Description	SWITCH ROCKER SPDT 5A 120V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	9305 pcs	Data sheet	7000 Series Mini Rocker Datasheet Rockers Product Guide
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	120V	Termination Style	Solder Lug
Switch Function	Mom-Off-Mom	Series	7000
Panel Cutout Dimensions	Rectangular - 17.96mm x 10.62mm	Packaging	Bulk
Other Names	*7105J2ZQE2 7105J2ZQE2-ND CKN2019	Operating Temperature	-30°C ~ 85°C
Mounting Type	Panel Mount, Flange	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	-	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	Epoxy Sealed Terminals	Electrical Life	40,000 Cycles
Detailed Description	Rocker Switch SPDT 5A (AC/DC) 120V Panel Mount, Flange	Current Rating	5A (AC/DC)
Color - Actuator/Cap	Black	Circuit	SPDT
Actuator Type	Paddle	Actuator Marking	No Marking
