Home > Products > Switches > Toggle Switches > 7103SPCWZQES

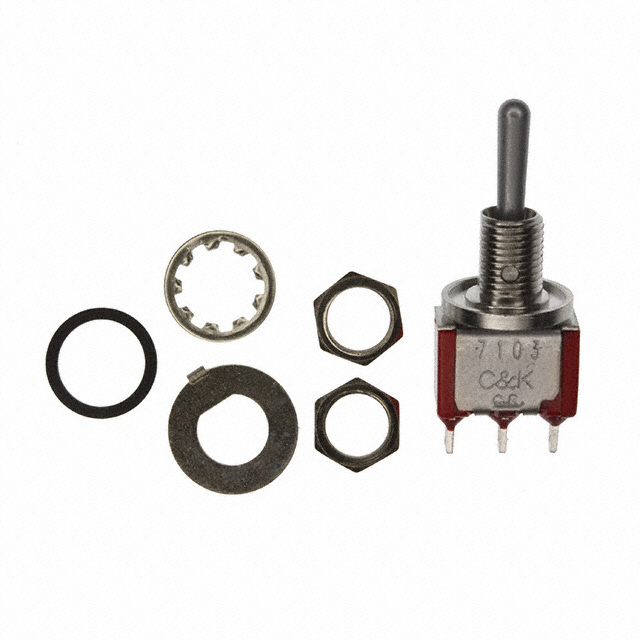

7103SPCWZQES

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 7103SPCWZQES with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	7103SPCWZQES
Manufacturer	C&K
Description	SWITCH TOGGLE SPDT 5A 120V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 9960 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$3.869

Product parameter
Data sheet

Product parameter

Part Number	7103SPCWZQES	Manufacturer	C&K
Description	SWITCH TOGGLE SPDT 5A 120V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	9960 pcs	Data sheet	7000 Series Mini Toggle Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	120V	Termination Style	Solder Lug
Switch Function	On-Off-On	Series	7000
Panel Cutout Dimensions	Circular - 6.35mm Dia	Packaging	Bulk
Other Names	*7103SPCWZQES CKN9694	Operating Temperature	-30°C ~ 85°C
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP67 - Dust Tight, Waterproof	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Satin Chrome Actuator	Electrical Life	40,000 Cycles
Detailed Description	Toggle Switch SPDT Panel Mount	Current Rating	5A (AC/DC)
Circuit	SPDT	Bushing Thread	1/4-40
Actuator Type	Anti-Rotation	Actuator Material	Brass
Actuator Length	10.67mm
