Home > Products > Switches > Snap Action, Limit Switches > 12TL604

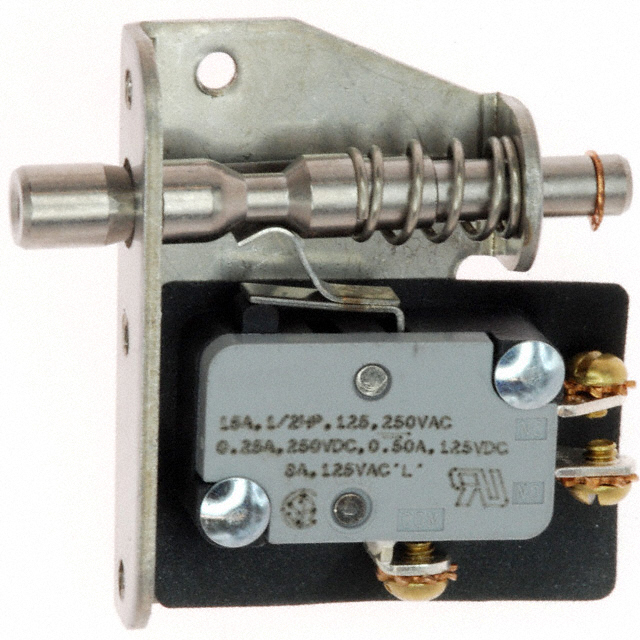

12TL604

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 12TL604 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	12TL604
Manufacturer	C&K
Description	SWITCH SNAP ACTION SPDT 15A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	50 pcs	100 pcs	250 pcs
~~In Stock~~ 3747 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs
	$15.378	$11.533	$10.572
	$9.932	$9.291	$8.97

Product parameter
Data sheet

Product parameter

Part Number	12TL604	Manufacturer	C&K
Description	SWITCH SNAP ACTION SPDT 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3747 pcs	Data sheet	TL Series Datasheet
Category	Switches	Voltage Rating - DC	125V
Voltage Rating - AC	125V	Termination Style	Screw Terminal
Switch Function	On-Mom	Series	TL
Release Force	-	Pretravel	-
Packaging	Bulk	Overtravel	-
Other Names	*12TL604 12TL604-ND CKN1402	Operating Temperature	-55°C ~ 150°C
Operating Position	-	Operating Force	-
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	-	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Features	-	Electrical Life	150,000 Cycles
Differential Travel	-	Current Rating	15A (AC), 500mA (DC)
Circuit	SPDT	Actuator Type	Push-Pull Plunger
