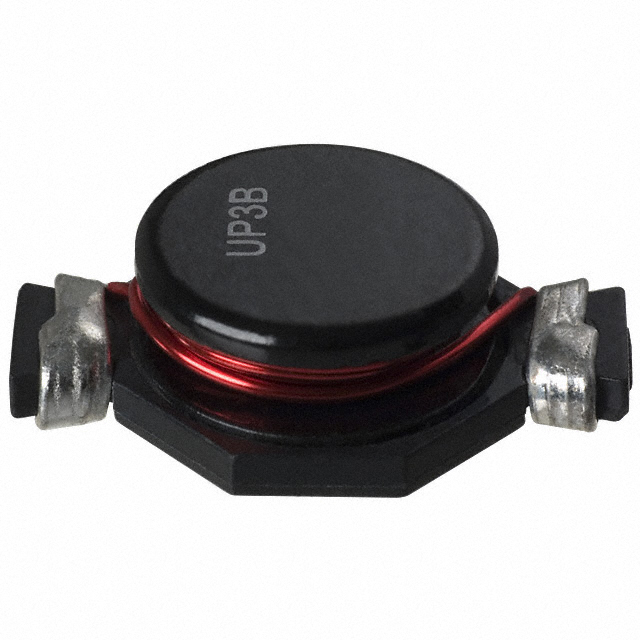

UP3B-2R2-R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UP3B-2R2-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy UP3B-2R2-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | UP3B-2R2-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | FIXED IND 2.2UH 9.2A 7.4 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 450 pcs | ||||
|---|---|---|---|---|---|
| $0.48 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | UP3B-2R2-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | FIXED IND 2.2UH 9.2A 7.4 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 78696 pcs | Data sheet | UNI-PAC (-R) |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.760" L x 0.520" W (19.30mm x 13.21mm) | Shielding | Unshielded |
| Series | UNI-PAC™ | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | 283-4223-2 UP3B-2R2 UP3B-2R2-ND UP3B-2R2-R-ND |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 2.2µH |
| Height - Seated (Max) | 0.268" (6.80mm) | Frequency - Self Resonant | - |
| Detailed Description | 2.2µH Unshielded Wirewound Inductor 9.2A 7.4 mOhm Max Nonstandard | DC Resistance (DCR) | 7.4 mOhm Max |
| Current Rating | 9.2A | Current - Saturation | 10.2A |
