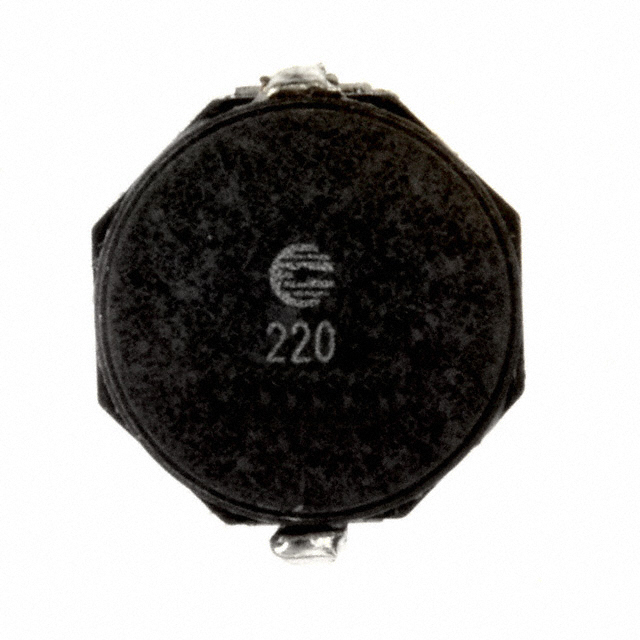

SD8350-220-R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SD8350-220-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SD8350-220-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SD8350-220-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | FIXED IND 22UH 1.8A 75 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 750 pcs | 1500 pcs | 3750 pcs | 5250 pcs | |
|---|---|---|---|---|---|
| $0.477 | $0.462 | $0.447 | $0.432 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SD8350-220-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | FIXED IND 22UH 1.8A 75 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 73317 pcs | Data sheet | SD8350 Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±30% | Supplier Device Package | - |
| Size / Dimension | 0.374" L x 0.327" W (9.50mm x 8.30mm) | Shielding | Shielded |
| Series | SD8350 | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | 513-1504-2 SD8350220R |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 22µH |
| Height - Seated (Max) | 0.118" (3.00mm) | Frequency - Self Resonant | - |
| Detailed Description | 22µH Shielded Wirewound Inductor 1.8A 75 mOhm Max Nonstandard | DC Resistance (DCR) | 75 mOhm Max |
| Current Rating | 1.8A | Current - Saturation | 2.6A |
