SD6030-101-R

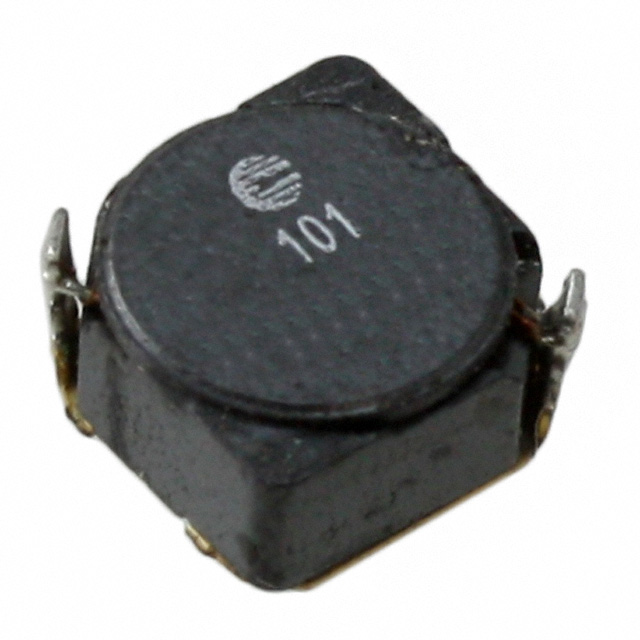

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SD6030-101-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SD6030-101-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SD6030-101-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | FIXED IND 94.4UH 760MA 520 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.631 | $0.584 | $0.409 | $0.331 | $0.302 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | SD6030-101-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | FIXED IND 94.4UH 760MA 520 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 77812 pcs | Data sheet | SD6030 Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±30% | Supplier Device Package | - |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) | Shielding | Shielded |
| Series | SD6030 | Ratings | - |
| Q @ Freq | - | Packaging | Cut Tape (CT) |
| Package / Case | Nonstandard | Other Names | 513-1480-1 |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 94.4µH |
| Height - Seated (Max) | 0.118" (3.00mm) | Frequency - Self Resonant | - |
| Detailed Description | 94.4µH Shielded Wirewound Inductor 760mA 520 mOhm Max Nonstandard | DC Resistance (DCR) | 520 mOhm Max |
| Current Rating | 760mA | Current - Saturation | 420mA |
