SD3814-6R8-R

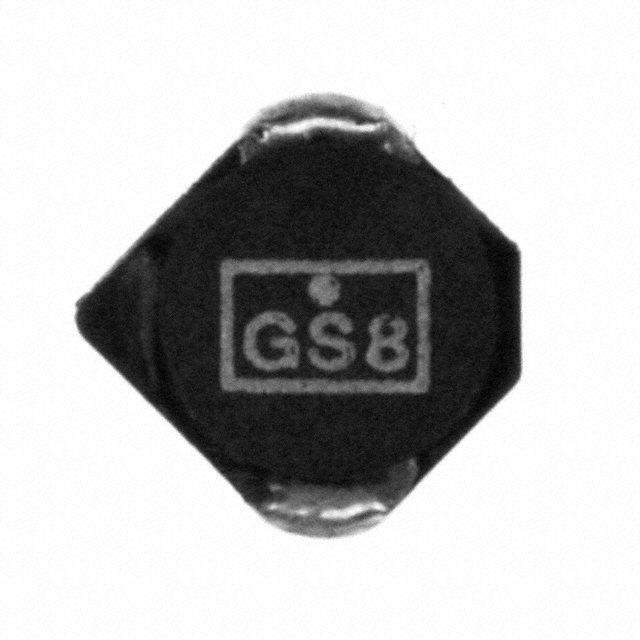

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SD3814-6R8-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SD3814-6R8-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SD3814-6R8-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | FIXED IND 6.8UH 870MA 207 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SD3814-6R8-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | FIXED IND 6.8UH 870MA 207 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5553 pcs | Data sheet | Switching Regulator Inductor Appl GuideSD38 Series Datasheet |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±15% | Supplier Device Package | - |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) | Shielding | Shielded |
| Series | SD38 | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Core | Ferrite | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 6.8µH |
| Height - Seated (Max) | 0.055" (1.40mm) | Frequency - Self Resonant | - |
| Detailed Description | 6.8µH Shielded Wirewound Inductor 870mA 207 mOhm Nonstandard | DC Resistance (DCR) | 207 mOhm |
| Current Rating | 870mA | Current - Saturation | 1.03A |
