SD25-101-R

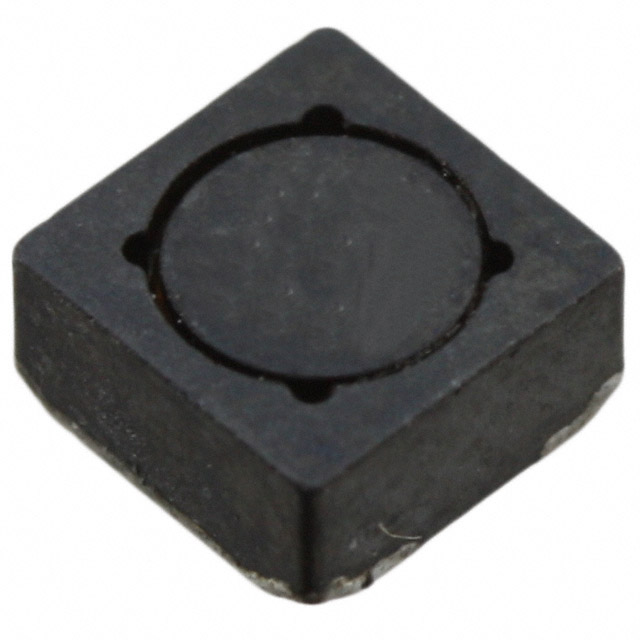

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SD25-101-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SD25-101-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SD25-101-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | FIXED IND 100UH 670MA 593.7 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.942 | $0.87 | $0.609 | $0.493 | $0.449 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | SD25-101-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | FIXED IND 100UH 670MA 593.7 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 76073 pcs | Data sheet | SD Series DatasheetSwitching Regulator Inductor Appl Guide |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.205" L x 0.205" W (5.20mm x 5.20mm) | Shielding | Shielded |
| Series | SD | Ratings | - |
| Q @ Freq | - | Packaging | Cut Tape (CT) |
| Package / Case | Nonstandard | Other Names | 283-3654-1 |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 100µH |
| Height - Seated (Max) | 0.098" (2.50mm) | Frequency - Self Resonant | - |
| Detailed Description | 100µH Shielded Wirewound Inductor 670mA 593.7 mOhm Nonstandard | DC Resistance (DCR) | 593.7 mOhm |
| Current Rating | 670mA | Current - Saturation | 398mA |
