OSD100

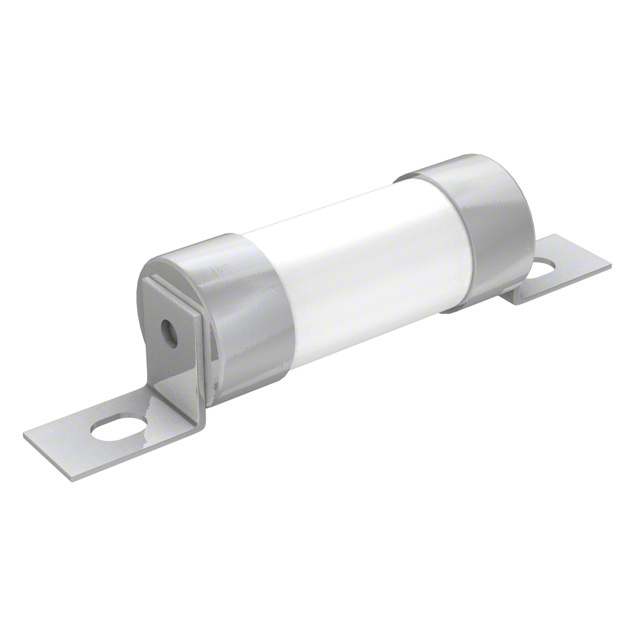

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy OSD100 with confidence from Components-World.HK, 1 Year Warranty
Dowload OSD100 Details in PDFSee Product Specifications for product details.
Buy OSD100 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | OSD100 |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | FUSE CRTRDGE 100A 550VAC CYLINDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 20 pcs | ||||
|---|---|---|---|---|---|
| $37.79 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | OSD100 | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | FUSE CRTRDGE 100A 550VAC CYLINDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 840 pcs | Data sheet | HRC Fuse |
| Category | Circuit Protection | Voltage Rating - AC | 550V |
| Size / Dimension | 0.827" Dia x 2.146" L (21.00mm x 54.50mm) | Series | OSD |
| Response Time | - | Packaging | Bulk |
| Package / Case | Cylindrical, Blade Terminal (Bolt) | Operating Temperature | - |
| Mounting Type | Bolt Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Melting I²t | 95600 | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Fuse Type | Cartridge |
| Features | - | Current Rating | 100A |
| Class | - | Breaking Capacity @ Rated Voltage | 80kA |
| Approvals | - | Applications | Electrical, Industrial |
