LDS0705-4R7M-R

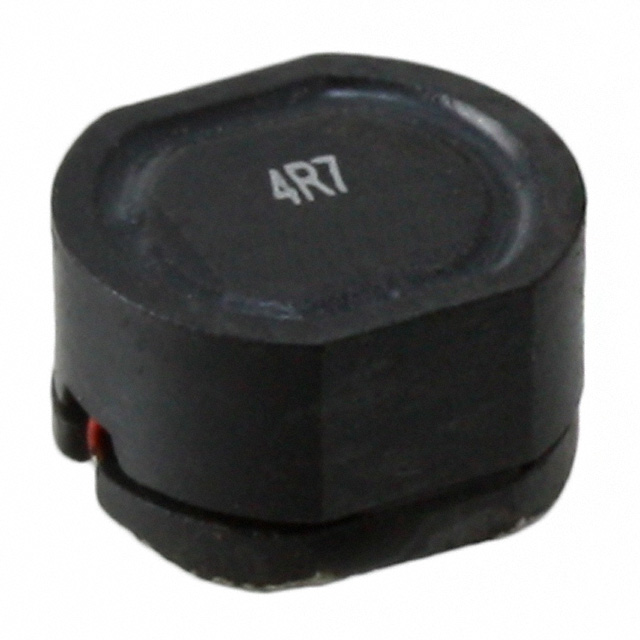

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LDS0705-4R7M-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy LDS0705-4R7M-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LDS0705-4R7M-R |
|---|---|
| Manufacturer | Eaton |
| Description | FIXED IND 4.7UH 3.32A 21 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 3000 pcs | 5000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.194 | $0.188 | $0.182 | $0.176 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | LDS0705-4R7M-R | Manufacturer | Eaton |
|---|---|---|---|
| Description | FIXED IND 4.7UH 3.32A 21 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 117148 pcs | Data sheet | LDS0705 Series |
| Category | Inductors, Coils, Chokes | Voltage - Breakdown | - |
| Usage | Shielded | Type | Wirewound |
| Size / Dimension | 0.307" L x 0.276" W (7.80mm x 7.00mm) | Series | LDS0705 |
| RoHS Status | Tape & Reel (TR) | Ratings | - |
| Polarization | Nonstandard | Other Names | 513-1445-2 LDS07054R7MR |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Manufacturer Part Number | LDS0705-4R7M-R | Height - Seated (Max) | 0.197" (5.00mm) |
| Hardware Type | 4.7µH | Frequency - Test | - |
| Frequency - Self Resonant | 21 mOhm | Expanded Description | 4.7µH Shielded Wirewound Inductor 3.32A 21 mOhm Nonstandard |
| ESR (Equivalent Series Resistance) | ±20% | Diameter - Shoulder | - |
| Description | FIXED IND 4.7UH 3.32A 21 MOHM | Delay Time | 100kHz |
| DC Resistance (DCR) | 3.53A | Current Rating | 3.32A |
| Current - Saturation | Ferrite |
