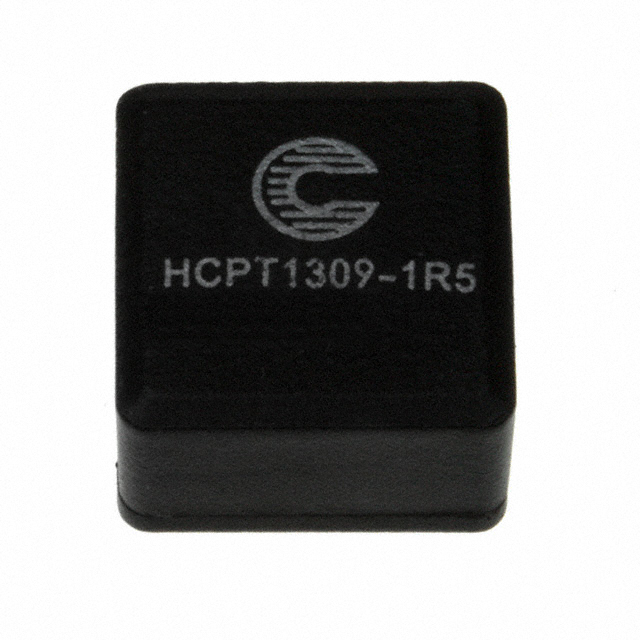

HCPT1309-1R5-R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HCPT1309-1R5-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HCPT1309-1R5-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HCPT1309-1R5-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | FIXED IND 1.59UH 13.7A 3.82 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $0.872 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | HCPT1309-1R5-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | FIXED IND 1.59UH 13.7A 3.82 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 34146 pcs | Data sheet | HCPT1309 Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.531" L x 0.465" W (13.50mm x 11.80mm) | Shielding | Unshielded |
| Series | HCPT1309 | Ratings | - |
| Q @ Freq | - | Packaging | Tray |
| Package / Case | Radial | Other Names | 513-1520 HCPT1309-1R5-R-ND |
| Operating Temperature | -40°C ~ 105°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Iron Powder |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 1.59µH |
| Height - Seated (Max) | 0.354" (9.00mm) | Frequency - Self Resonant | - |
| Detailed Description | 1.59µH Unshielded Wirewound Inductor 13.7A 3.82 mOhm Radial | DC Resistance (DCR) | 3.82 mOhm |
| Current Rating | 13.7A | Current - Saturation | 30.6A |
