HCM1A1707-4R7-R

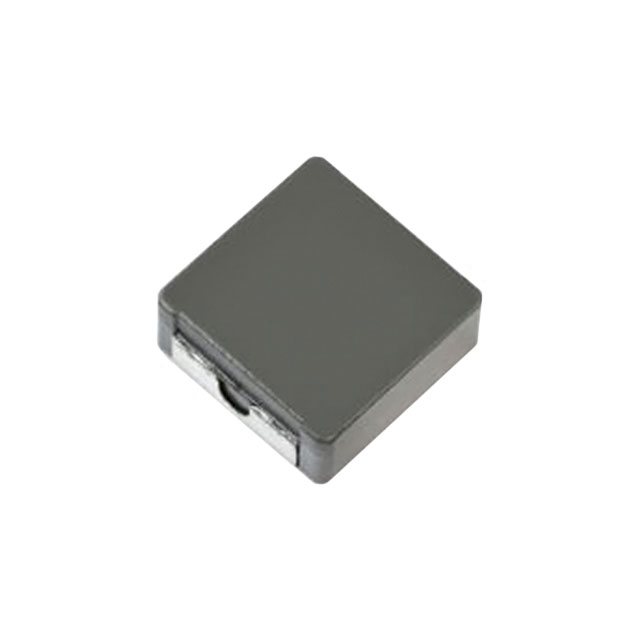

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HCM1A1707-4R7-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HCM1A1707-4R7-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HCM1A1707-4R7-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | FIXED IND 4.7UH 20.0A SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $2.735 | $2.487 | $1.691 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | HCM1A1707-4R7-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | FIXED IND 4.7UH 20.0A SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21063 pcs | Data sheet | HCM1A1707 Series |
| Category | Inductors, Coils, Chokes | Type | - |
| Tolerance | ±20% | Supplier Device Package | SMD |
| Size / Dimension | 0.677" L x 0.663" W (17.20mm x 16.85mm) | Shielding | Shielded |
| Series | HCM1A | Ratings | AEC-Q200 |
| Q @ Freq | - | Packaging | Original-Reel® |
| Package / Case | 2-SMD, J-Lead | Other Names | 283-4769-6 |
| Operating Temperature | -55°C ~ 155°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Iron Powder |
| Manufacturer Standard Lead Time | 21 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 4.7µH |
| Height - Seated (Max) | 0.276" (7.00mm) | Frequency - Self Resonant | - |
| Features | - | Detailed Description | 4.7µH Shielded Inductor 18A 4.72 mOhm Max 2-SMD, J-Lead |
| DC Resistance (DCR) | 4.72 mOhm Max | Current Rating | 18A |
| Current - Saturation | 20A |
