HCM1A0805-220-R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HCM1A0805-220-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HCM1A0805-220-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HCM1A0805-220-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | FIXED IND 22.0UH 3.8A SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | ||||
|---|---|---|---|---|---|
| $0.474 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | HCM1A0805-220-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | FIXED IND 22.0UH 3.8A SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 79309 pcs | Data sheet | HCM1A0805 Series |
| Category | Inductors, Coils, Chokes | Type | - |
| Tolerance | ±20% | Supplier Device Package | SMD |
| Size / Dimension | 0.319" L x 0.315" W (8.10mm x 8.00mm) | Shielding | Shielded |
| Series | HCM1A | Ratings | AEC-Q200 |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, J-Lead | Other Names | HCM1A0805-220 |
| Operating Temperature | -55°C ~ 155°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Iron Powder |
| Manufacturer Standard Lead Time | 15 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 22µH |
| Height - Seated (Max) | 0.213" (5.40mm) | Frequency - Self Resonant | - |
| Features | - | Detailed Description | 22µH Shielded Inductor 2A 110 mOhm Max 2-SMD, J-Lead |
| DC Resistance (DCR) | 110 mOhm Max | Current Rating | 2A |
| Current - Saturation | 3.8A |
- Related products
- Related news
Related products
- Part#:
HCM1A0703-R82-R - Manufacturers:
Bussmann (Eaton) - Description:
FIXED IND 0.82UH 6.7A SMD - In Stock:
71603
- Part#:
HCM1A0703-R47-R - Manufacturers:
Bussmann (Eaton) - Description:
FIXED IND 0.47UH 3.7A SMD - In Stock:
94243
- Part#:
HCM1A1104-150-R - Manufacturers:
Bussmann (Eaton) - Description:
FIXED IND 15.0UH 6.4A SMD - In Stock:
63791
- Part#:
HCM1A1104-100-R - Manufacturers:
Bussmann (Eaton) - Description:
FIXED IND 10.0UH 6.8A SMD - In Stock:
71303
- Part#:
HCM1A0805-100-R - Manufacturers:
Bussmann (Eaton) - Description:
FIXED IND 10.0UH 8.0A SMD - In Stock:
64773
- Part#:
HCM1A0703-R68-R - Manufacturers:
Bussmann (Eaton) - Description:
FIXED IND 680NH 10A 5.5MOHM SMD - In Stock:
104416
- Part#:
HCM1A0805-101-R - Manufacturers:
Bussmann (Eaton) - Description:
FIXED IND 100UH 2.7A SMD - In Stock:
84501
- Part#:
HCM1A0703-R56-R - Manufacturers:
Bussmann (Eaton) - Description:
FIXED IND 0.56UH 4.7A SMD - In Stock:
60079
- Part#:
HCM1A1104-220-R - Manufacturers:
Bussmann (Eaton) - Description:
FIXED IND 22.0UH 6.0A SMD - In Stock:
71555
- Part#:

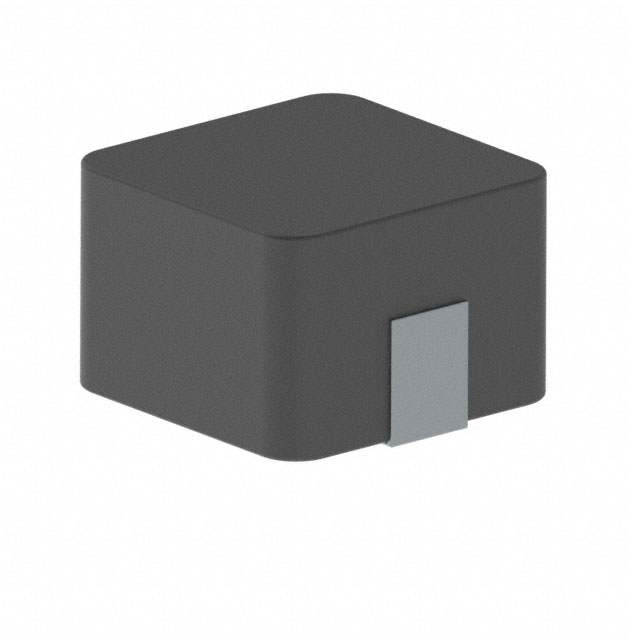

HCM1A0805-150-R - Manufacturers:
