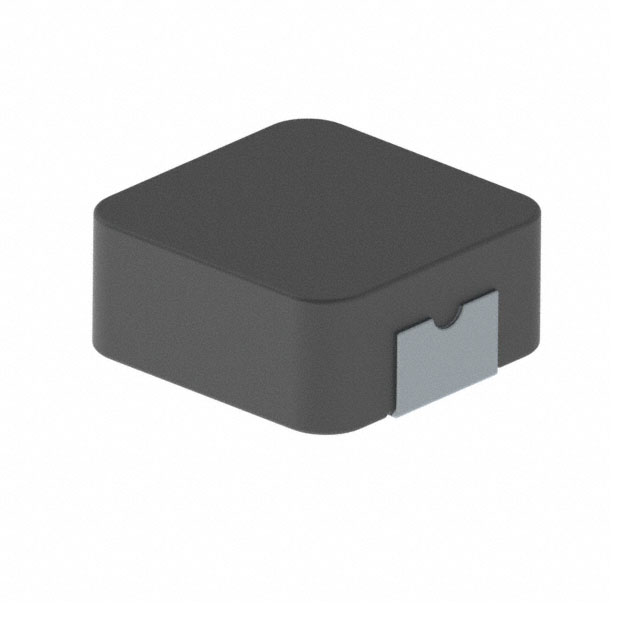

HCM1A0703-2R2-R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HCM1A0703-2R2-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HCM1A0703-2R2-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HCM1A0703-2R2-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | FIXED IND 2.2UH 18A SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | 4000 pcs | 6000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.324 | $0.313 | $0.303 | $0.292 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HCM1A0703-2R2-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | FIXED IND 2.2UH 18A SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 69217 pcs | Data sheet | HCM1A0703 Series |
| Category | Inductors, Coils, Chokes | Type | - |
| Tolerance | ±20% | Supplier Device Package | SMD |
| Size / Dimension | 0.280" L x 0.268" W (7.10mm x 6.80mm) | Shielding | Shielded |
| Series | HCM1A | Ratings | AEC-Q200 |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, J-Lead | Other Names | 283-4747-2 HCM1A0703-2R2 |
| Operating Temperature | -55°C ~ 155°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Iron Powder |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 2.2µH |
| Height - Seated (Max) | 0.118" (3.00mm) | Frequency - Self Resonant | - |
| Features | - | Detailed Description | 2.2µH Shielded Inductor 5.7A 20 mOhm Max 2-SMD, J-Lead |
| DC Resistance (DCR) | 20 mOhm Max | Current Rating | 5.7A |
| Current - Saturation | 10A |
