HCM1307-3R3-R

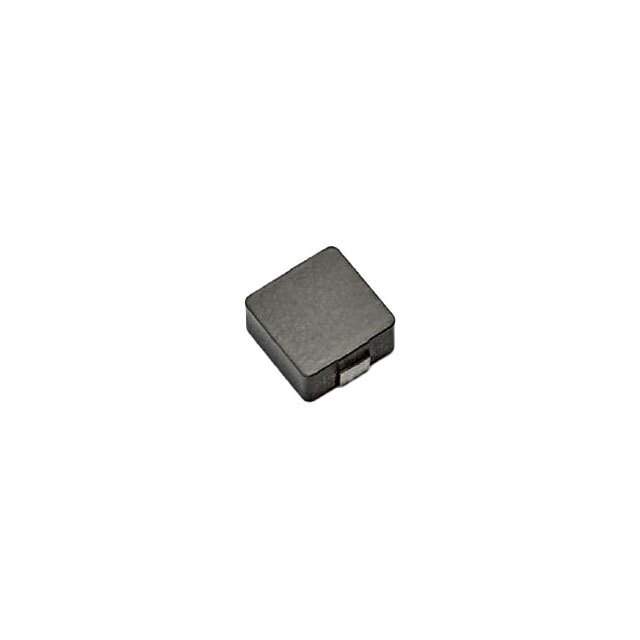

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HCM1307-3R3-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HCM1307-3R3-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HCM1307-3R3-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | FIXED IND 3.3UH 15A 4.5 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.849 | $0.782 | $0.547 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | HCM1307-3R3-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | FIXED IND 3.3UH 15A 4.5 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 69690 pcs | Data sheet | HCM1307 Series Datasheet |
| Category | Inductors, Coils, Chokes | Type | - |
| Tolerance | ±20% | Size / Dimension | 0.520" L x 0.492" W (13.20mm x 12.50mm) |
| Shielding | Shielded | Series | HCM1307 |
| Ratings | - | Q @ Freq | - |
| Packaging | Cut Tape (CT) | Package / Case | Nonstandard |
| Other Names | 283-4636-1 | Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Core | Iron Powder | Manufacturer Standard Lead Time | 21 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 100kHz |
| Inductance | 3.3µH | Height - Seated (Max) | 0.256" (6.50mm) |
| Frequency - Self Resonant | - | Detailed Description | 3.3µH Shielded Inductor 15A 4.5 mOhm Max Nonstandard |
| DC Resistance (DCR) | 4.5 mOhm Max | Current Rating | 15A |
| Current - Saturation | 40A |
