HCM1103-8R2-R

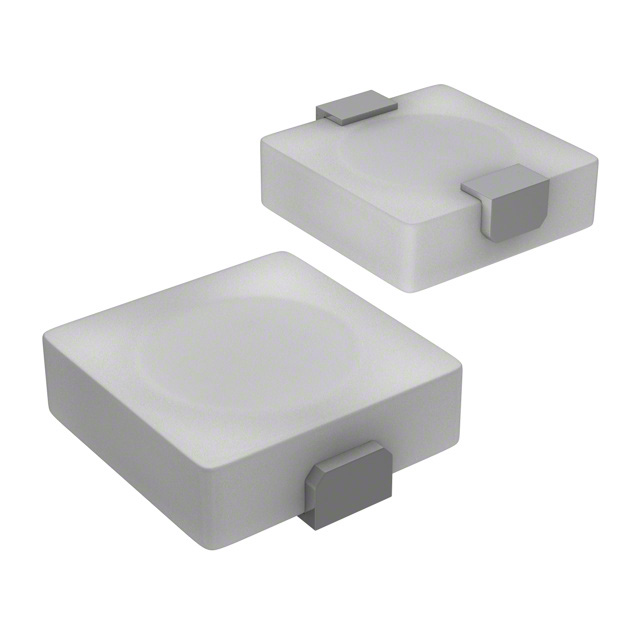

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HCM1103-8R2-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HCM1103-8R2-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HCM1103-8R2-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | FIXED IND 8.2UH 5A 38.5 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.908 | $0.839 | $0.587 | $0.476 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HCM1103-8R2-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | FIXED IND 8.2UH 5A 38.5 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 81500 pcs | Data sheet | HCM1103 Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.437" L x 0.394" W (11.10mm x 10.00mm) | Shielding | Shielded |
| Series | HCM1103 | Ratings | - |
| Q @ Freq | - | Packaging | Original-Reel® |
| Package / Case | Nonstandard | Other Names | 283-4138-6 |
| Operating Temperature | -55°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Iron Powder |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 8.2µH |
| Height - Seated (Max) | 0.118" (3.00mm) | Frequency - Self Resonant | - |
| Detailed Description | 8.2µH Shielded Wirewound Inductor 5A 38.5 mOhm Max Nonstandard | DC Resistance (DCR) | 38.5 mOhm Max |
| Current Rating | 5A | Current - Saturation | 8.5A |
