HCF1305-4R7-R

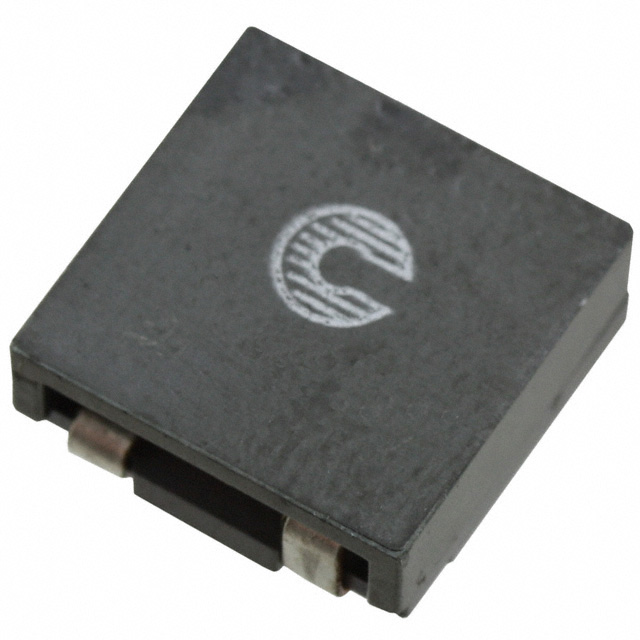

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HCF1305-4R7-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HCF1305-4R7-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HCF1305-4R7-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | FIXED IND 4.7UH 10.9A 7.2 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 600 pcs | 1200 pcs | 3000 pcs | 6000 pcs | |
|---|---|---|---|---|---|
| $0.668 | $0.627 | $0.606 | $0.585 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HCF1305-4R7-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | FIXED IND 4.7UH 10.9A 7.2 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 61607 pcs | Data sheet | HCF1305 Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Shielding | Unshielded |
| Series | HCF1305 | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | 513-1517-2 HCF13054R7R |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 4.7µH |
| Height - Seated (Max) | 0.197" (5.00mm) | Frequency - Self Resonant | - |
| Detailed Description | 4.7µH Unshielded Wirewound Inductor 10.9A 7.2 mOhm Max Nonstandard | DC Resistance (DCR) | 7.2 mOhm Max |
| Current Rating | 10.9A | Current - Saturation | 10.4A |
