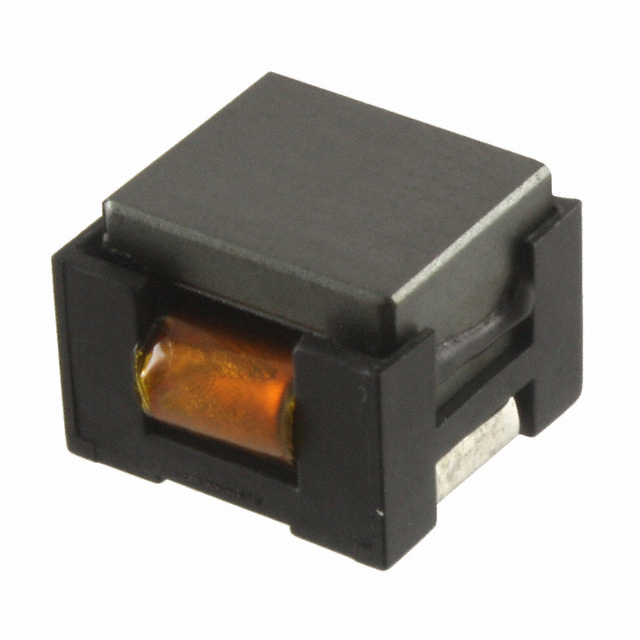

HC1-R22-R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HC1-R22-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HC1-R22-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HC1-R22-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | FIXED IND 220NH 51.42A 0.36 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.742 | $1.598 | $1.046 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | HC1-R22-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | FIXED IND 220NH 51.42A 0.36 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 28755 pcs | Data sheet | HC1 Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±15% | Supplier Device Package | - |
| Size / Dimension | 0.512" L x 0.512" W (13.00mm x 13.00mm) | Shielding | Unshielded |
| Series | HC1 | Ratings | - |
| Q @ Freq | - | Packaging | Cut Tape (CT) |
| Package / Case | Nonstandard | Other Names | 513-1160-1 |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 300kHz | Inductance | 220nH |
| Height - Seated (Max) | 0.394" (10.00mm) | Frequency - Self Resonant | - |
| Detailed Description | 220nH Unshielded Wirewound Inductor 51.42A 0.36 mOhm Max Nonstandard | DC Resistance (DCR) | 0.36 mOhm Max |
| Current Rating | 51.42A | Current - Saturation | 40.5A |
