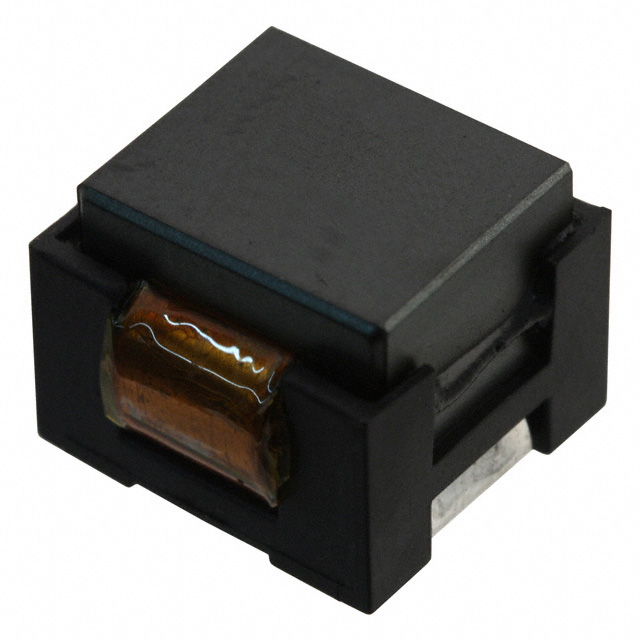

HC1-1R7-R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HC1-1R7-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HC1-1R7-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HC1-1R7-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | FIXED IND 1.7UH 22.3A 2 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 250 pcs | 500 pcs | 750 pcs | 1250 pcs | 2500 pcs |
|---|---|---|---|---|---|
| $0.802 | $0.755 | $0.731 | $0.707 | $0.684 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | HC1-1R7-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | FIXED IND 1.7UH 22.3A 2 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 44317 pcs | Data sheet | HC1 Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±15% | Supplier Device Package | - |
| Size / Dimension | 0.512" L x 0.512" W (13.00mm x 13.00mm) | Shielding | Unshielded |
| Series | HC1 | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | 513-1155-2 HC1-1R7 HC1-1R7-ND HC11R7R |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 300kHz | Inductance | 1.7µH |
| Height - Seated (Max) | 0.394" (10.00mm) | Frequency - Self Resonant | - |
| Detailed Description | 1.7µH Unshielded Wirewound Inductor 22.3A 2 mOhm Max Nonstandard | DC Resistance (DCR) | 2 mOhm Max |
| Current Rating | 22.3A | Current - Saturation | 22.2A |
