DRQ74-100-R

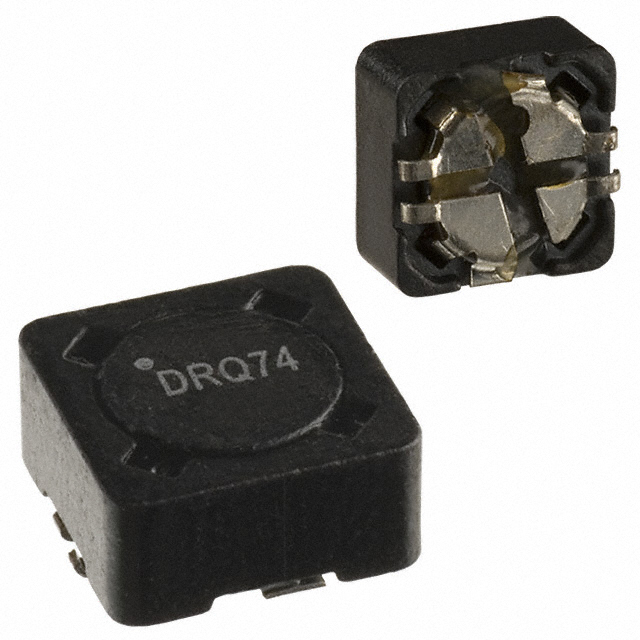

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DRQ74-100-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DRQ74-100-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DRQ74-100-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | INDUCT ARRAY 2 COIL 9.882UH SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1100 pcs | 3300 pcs | 5500 pcs | 11000 pcs | |
|---|---|---|---|---|---|
| $0.308 | $0.298 | $0.288 | $0.278 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | DRQ74-100-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | INDUCT ARRAY 2 COIL 9.882UH SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 81191 pcs | Data sheet | DRQ Series |
| Category | Inductors, Coils, Chokes | Tolerance | ±20% |
| Size / Dimension | 0.299" L x 0.299" W (7.60mm x 7.60mm) | Shielding | Shielded |
| Series | DRQ | Ratings | - |
| Packaging | Tape & Reel (TR) | Package / Case | Nonstandard |
| Other Names | 513-1267-2 DRQ74-100 DRQ74-100-ND DRQ74-100-R-ND DRQ74-100R DRQ74100R |
Operating Temperature | -40°C ~ 125°C |
| Number of Coils | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance - Connected In Series | 39.53µH |
| Inductance - Connected In Parallel | 9.882µH | Height | 0.175" (4.45mm) |
| Detailed Description | Shielded 2 Coil Inductor Array 39.53µH Inductance - Connected in Series 9.882µH Inductance - Connected in Parallel 48.9 mOhm DC Resistance (DCR) - Parallel 2.41A Nonstandard | DC Resistance (DCR) - Series | 196 mOhm |
| DC Resistance (DCR) - Parallel | 48.9 mOhm | Current Saturation - Series | 1.58A |
| Current Saturation - Parallel | 3.17A | Current Rating - Series | 1.2A |
| Current Rating - Parallel | 2.41A |
