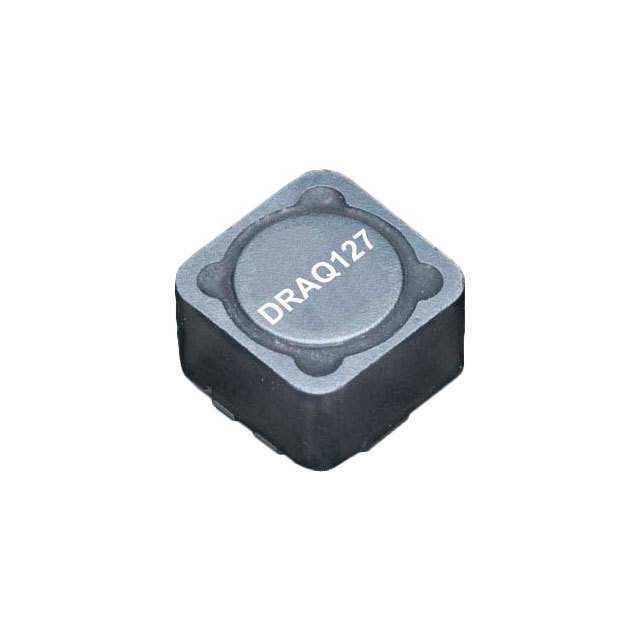

DRAQ127-330-R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DRAQ127-330-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DRAQ127-330-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DRAQ127-330-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | INDUCT ARRAY 2 COIL 32UH SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.601 | $0.558 | $0.403 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | DRAQ127-330-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | INDUCT ARRAY 2 COIL 32UH SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 90171 pcs | Data sheet | DRAQ127 Series |
| Category | Inductors, Coils, Chokes | Tolerance | ±25% |
| Size / Dimension | 0.480" L x 0.480" W (12.20mm x 12.20mm) | Shielding | Shielded |
| Series | DRAQ127 | Ratings | AEC-Q200 |
| Packaging | Cut Tape (CT) | Package / Case | Nonstandard |
| Other Names | 283-4517-1 | Operating Temperature | -40°C ~ 165°C |
| Number of Coils | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance - Connected In Series | 128µH |
| Inductance - Connected In Parallel | 32µH | Height | 0.315" (8.00mm) |
| Detailed Description | Shielded 2 Coil Inductor Array 128µH Inductance - Connected in Series 32µH Inductance - Connected in Parallel 72 mOhm Max DC Resistance (DCR) - Parallel 3.22A Nonstandard | DC Resistance (DCR) - Series | 288 mOhm Max |
| DC Resistance (DCR) - Parallel | 72 mOhm Max | Current Saturation - Series | 2.49A |
| Current Saturation - Parallel | 4.98A | Current Rating - Series | 1.61A |
| Current Rating - Parallel | 3.22A |
