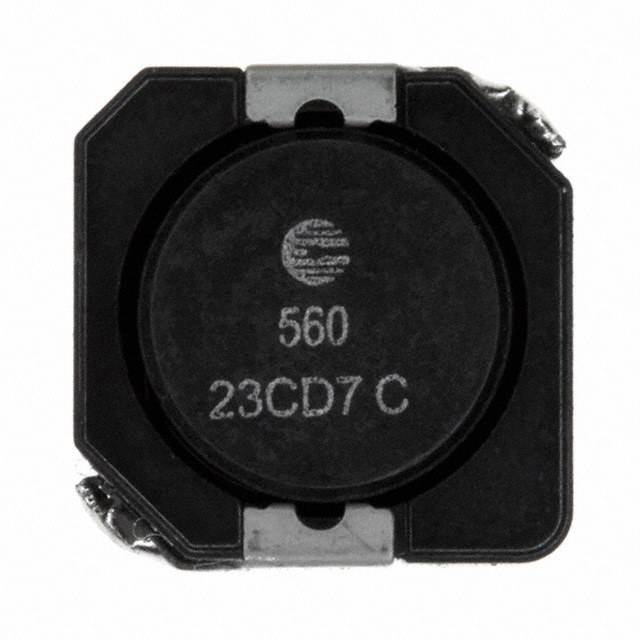

DR1050-560-R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DR1050-560-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DR1050-560-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DR1050-560-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | FIXED IND 56UH 1.96A 123 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | |
|---|---|---|---|---|---|
| $0.347 | $0.316 | $0.306 | $0.296 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | DR1050-560-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | FIXED IND 56UH 1.96A 123 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 66428 pcs | Data sheet | DR1050 Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±30% | Supplier Device Package | - |
| Size / Dimension | 0.413" L x 0.406" W (10.50mm x 10.30mm) | Shielding | Shielded |
| Series | DR1050 | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | 513-1420-2 DR1050560R |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 56µH |
| Height - Seated (Max) | 0.197" (5.00mm) | Frequency - Self Resonant | - |
| Detailed Description | 56µH Shielded Wirewound Inductor 1.96A 123 mOhm Max Nonstandard | DC Resistance (DCR) | 123 mOhm Max |
| Current Rating | 1.96A | Current - Saturation | 1.94A |
