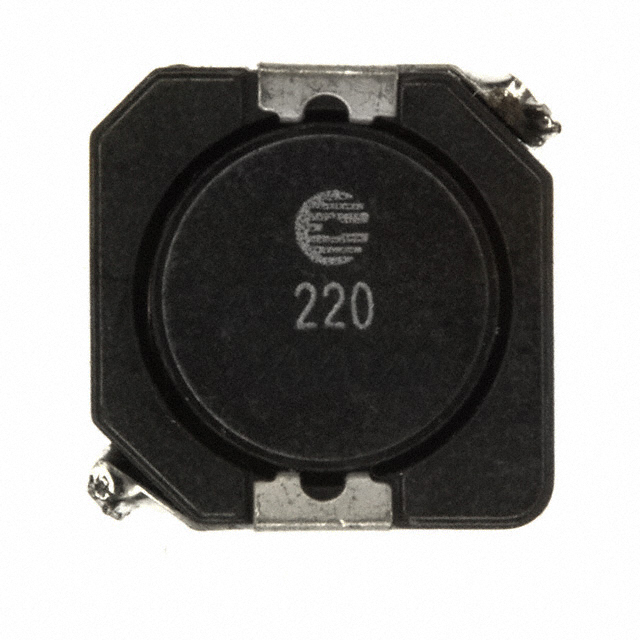

DR1050-220-R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DR1050-220-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DR1050-220-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DR1050-220-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | FIXED IND 22UH 3.12A 48.4 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.763 | $0.705 | $0.493 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | DR1050-220-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | FIXED IND 22UH 3.12A 48.4 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 75280 pcs | Data sheet | DR1050 Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±30% | Supplier Device Package | - |
| Size / Dimension | 0.413" L x 0.406" W (10.50mm x 10.30mm) | Shielding | Shielded |
| Series | DR1050 | Ratings | - |
| Q @ Freq | - | Packaging | Cut Tape (CT) |
| Package / Case | Nonstandard | Other Names | 513-1417-1 |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 22µH |
| Height - Seated (Max) | 0.197" (5.00mm) | Frequency - Self Resonant | - |
| Detailed Description | 22µH Shielded Wirewound Inductor 3.12A 48.4 mOhm Max Nonstandard | DC Resistance (DCR) | 48.4 mOhm Max |
| Current Rating | 3.12A | Current - Saturation | 3A |
