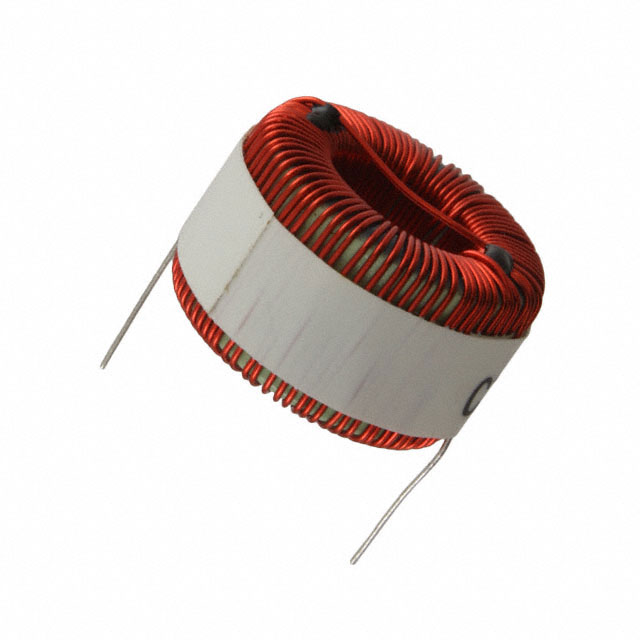

CTX500-1-52LP-R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CTX500-1-52LP-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CTX500-1-52LP-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CTX500-1-52LP-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | FIXED IND 500UH 1.7A 361 MOHM TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $2.092 | $1.917 | $1.255 | |||
| 500 pcs | 1000 pcs | 2500 pcs | |||
| $1.115 | $1.046 | $1.011 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | CTX500-1-52LP-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | FIXED IND 500UH 1.7A 361 MOHM TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 34293 pcs | Data sheet | Low Cost Power Inductors |
| Category | Inductors, Coils, Chokes | Type | Toroidal |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.945" Dia (24.00mm) | Shielding | Unshielded |
| Series | CTX | Ratings | - |
| Q @ Freq | - | Packaging | Bulk |
| Package / Case | Radial | Other Names | 513-1737 CTX500-1-52LP CTX500-1-52LP-ND CTX500-1-52LP-R-ND CTX500152LPR |
| Operating Temperature | -40°C ~ 75°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Iron Powder |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 500µH |
| Height - Seated (Max) | 0.602" (15.30mm) | Frequency - Self Resonant | - |
| Detailed Description | 500µH Unshielded Toroidal Inductor 1.7A 361 mOhm Max Radial | DC Resistance (DCR) | 361 mOhm Max |
| Current Rating | 1.7A | Current - Saturation | 1.9A |
