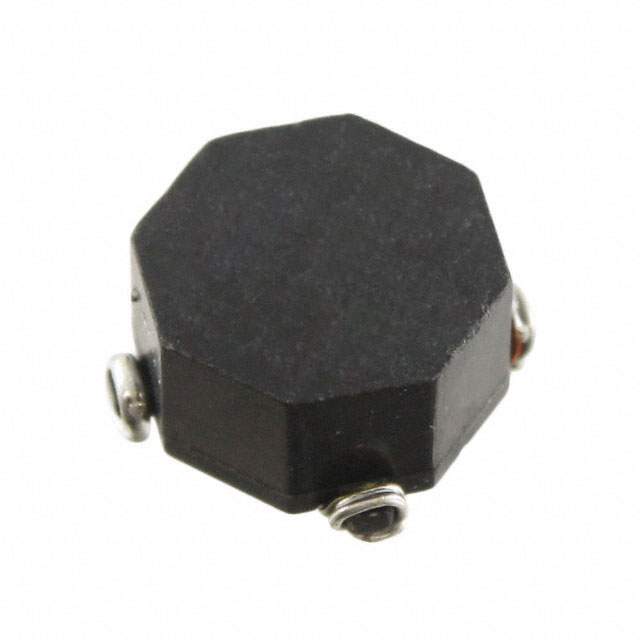

CTX5-4A-R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CTX5-4A-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CTX5-4A-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CTX5-4A-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | INDUCT ARRAY 2 COIL 4.26UH SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.976 | $1.796 | $1.221 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | CTX5-4A-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | INDUCT ARRAY 2 COIL 4.26UH SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 30333 pcs | Data sheet | CTX Series ECONO-PAC, OCTA-PAC/PLUS |
| Category | Inductors, Coils, Chokes | Tolerance | ±25% |
| Size / Dimension | 0.550" L x 0.550" W (13.97mm x 13.97mm) | Shielding | Unshielded |
| Series | OCTA-PAC® PLUS | Ratings | - |
| Packaging | Cut Tape (CT) | Package / Case | Nonstandard |
| Other Names | 513-1742-1 | Operating Temperature | -40°C ~ 85°C |
| Number of Coils | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance - Connected In Series | 17.05µH |
| Inductance - Connected In Parallel | 4.26µH | Height | 0.250" (6.35mm) |
| Detailed Description | Unshielded 2 Coil Inductor Array 17.05µH Inductance - Connected in Series 4.26µH Inductance - Connected in Parallel 8.5 mOhm Max DC Resistance (DCR) - Parallel 7.21A Nonstandard | DC Resistance (DCR) - Series | 33.9 mOhm Max |
| DC Resistance (DCR) - Parallel | 8.5 mOhm Max | Current Saturation - Series | 3.21A |
| Current Saturation - Parallel | 6.43A | Current Rating - Series | 3.61A |
| Current Rating - Parallel | 7.21A |
