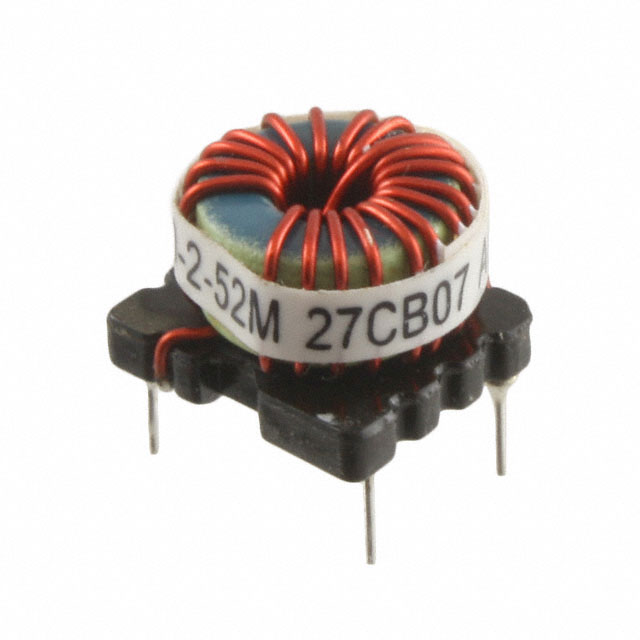

CTX20-2-52M-R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CTX20-2-52M-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CTX20-2-52M-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CTX20-2-52M-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | FIXED IND 20UH 3.2A 39.2 MOHM TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.459 | $1.336 | $0.874 | |||
| 500 pcs | 1000 pcs | 2500 pcs | |||
| $0.777 | $0.729 | $0.704 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | CTX20-2-52M-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | FIXED IND 20UH 3.2A 39.2 MOHM TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 43644 pcs | Data sheet | Low Cost Power Inductors |
| Category | Inductors, Coils, Chokes | Type | Toroidal |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.535" L x 0.449" W (13.60mm x 11.40mm) | Shielding | Unshielded |
| Series | CTX | Ratings | - |
| Q @ Freq | - | Packaging | Bulk |
| Package / Case | Radial | Other Names | 513-1688 CTX20-2-52M CTX20-2-52M-ND CTX20-2-52M-R-ND CTX20252MR |
| Operating Temperature | -40°C ~ 75°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Iron Powder |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 20µH |
| Height - Seated (Max) | 0.449" (11.40mm) | Frequency - Self Resonant | - |
| Detailed Description | 20µH Unshielded Toroidal Inductor 3.2A 39.2 mOhm Max Radial | DC Resistance (DCR) | 39.2 mOhm Max |
| Current Rating | 3.2A | Current - Saturation | 3.2A |
