CTX100-5-52M-R

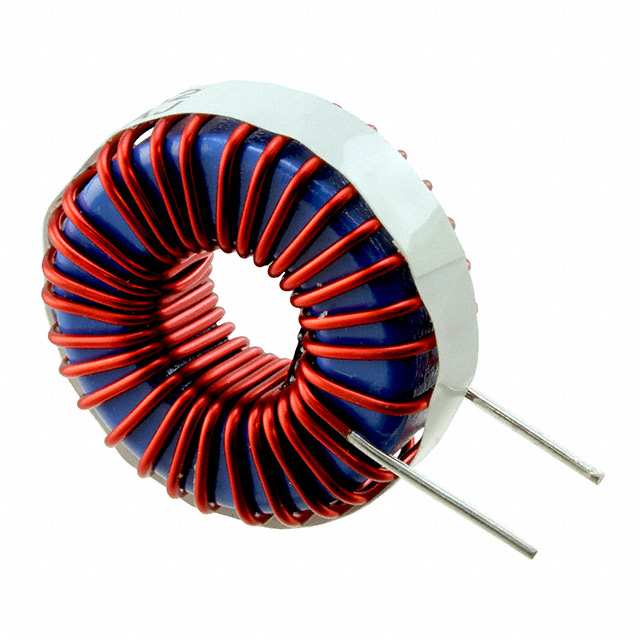

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CTX100-5-52M-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CTX100-5-52M-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CTX100-5-52M-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | FIXED IND 100UH 8.2A 26.7 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 45 pcs | ||||
|---|---|---|---|---|---|
| $2.794 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CTX100-5-52M-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | FIXED IND 100UH 8.2A 26.7 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10654 pcs | Data sheet | Low Cost Power Inductors |
| Category | Inductors, Coils, Chokes | Type | Toroidal |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 1.394" L x 0.854" W (35.40mm x 21.70mm) | Shielding | Unshielded |
| Series | CTX | Ratings | - |
| Q @ Freq | - | Packaging | Bulk |
| Package / Case | Radial | Operating Temperature | -40°C ~ 75°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Core | Iron Powder | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 100kHz |
| Inductance | 100µH | Height - Seated (Max) | 1.583" (40.20mm) |
| Frequency - Self Resonant | - | Detailed Description | 100µH Unshielded Toroidal Inductor 8.2A 26.7 mOhm Max Radial |
| DC Resistance (DCR) | 26.7 mOhm Max | Current Rating | 8.2A |
| Current - Saturation | 7.5A |
