CTX10-2-R

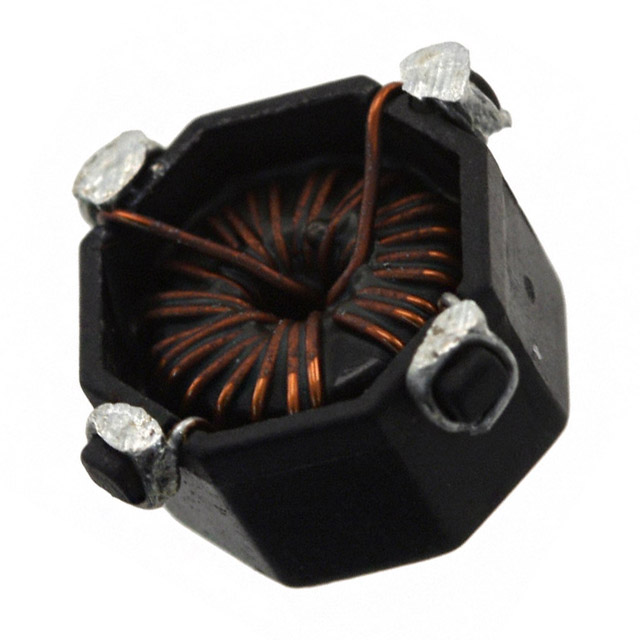

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CTX10-2-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CTX10-2-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CTX10-2-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | INDUCT ARRAY 2 COIL 10.58UH SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 800 pcs | 1600 pcs | |||
|---|---|---|---|---|---|
| $1.067 | $1.032 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CTX10-2-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | INDUCT ARRAY 2 COIL 10.58UH SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 31716 pcs | Data sheet | CTX Series ECONO-PAC, OCTA-PAC/PLUS |
| Category | Inductors, Coils, Chokes | Tolerance | ±20% |
| Size / Dimension | 0.450" L x 0.450" W (11.43mm x 11.43mm) | Shielding | Unshielded |
| Series | OCTA-PAC® | Ratings | - |
| Packaging | Tape & Reel (TR) | Package / Case | Nonstandard |
| Other Names | 513-1004-2 CTX10-2 CTX102R |
Operating Temperature | -40°C ~ 85°C |
| Number of Coils | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance - Connected In Series | 42.3µH |
| Inductance - Connected In Parallel | 10.58µH | Height | 0.235" (5.97mm) |
| Detailed Description | Unshielded 2 Coil Inductor Array 42.3µH Inductance - Connected in Series 10.58µH Inductance - Connected in Parallel 31 mOhm Max DC Resistance (DCR) - Parallel 2.5A Nonstandard | DC Resistance (DCR) - Series | 125 mOhm Max |
| DC Resistance (DCR) - Parallel | 31 mOhm Max | Current Rating - Series | 1.25A |
| Current Rating - Parallel | 2.5A |
