CTX06-14620

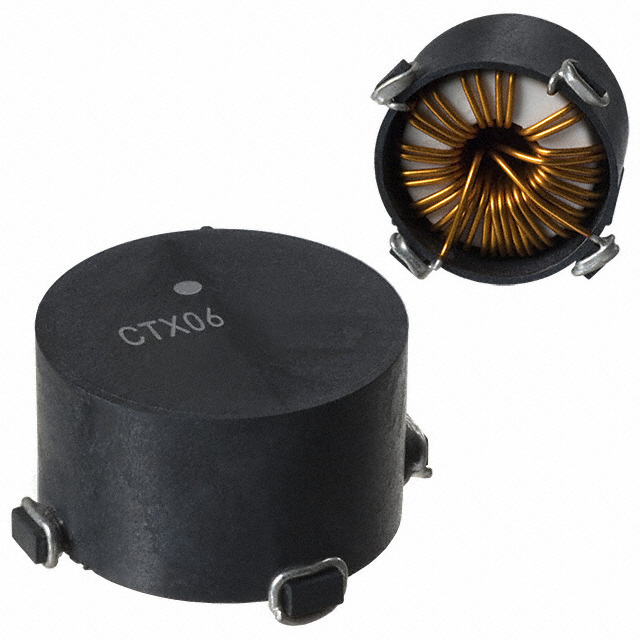

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CTX06-14620 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CTX06-14620 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CTX06-14620 |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | FIXED IND 47UH 7.1A 16.6 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $4.832 | $4.281 | $3.866 | $3.673 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | CTX06-14620 | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | FIXED IND 47UH 7.1A 16.6 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9003 pcs | Data sheet | CTX06-14620 Drawing |
| Category | Inductors, Coils, Chokes | Type | Toroidal |
| Tolerance | ±0.25% | Supplier Device Package | - |
| Size / Dimension | 0.984" L x 0.984" W (25.00mm x 25.00mm) | Shielding | Unshielded |
| Series | CTX | Ratings | - |
| Q @ Freq | - | Packaging | Bulk |
| Package / Case | Nonstandard | Other Names | 513-1100 CTX06-14620-R CTX0614620 |
| Operating Temperature | -40°C ~ 75°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Iron Powder |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 47µH |
| Height - Seated (Max) | 0.484" (12.30mm) | Frequency - Self Resonant | - |
| Detailed Description | 47µH Unshielded Toroidal Inductor 7.1A 16.6 mOhm Max Nonstandard | DC Resistance (DCR) | 16.6 mOhm Max |
| Current Rating | 7.1A | Current - Saturation | - |
