CTX01-16025

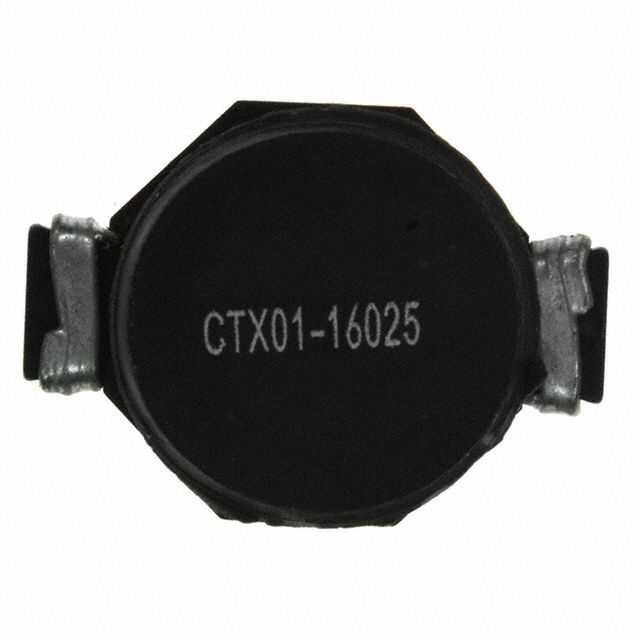

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CTX01-16025 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CTX01-16025 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CTX01-16025 |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | FIXED IND 120UH 2A 62 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CTX01-16025 | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | FIXED IND 120UH 2A 62 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5477 pcs | Data sheet | CTX01-16025 |
| Category | Inductors, Coils, Chokes | Type | Toroidal |
| Tolerance | ±25% | Supplier Device Package | - |
| Size / Dimension | 0.697" L x 0.506" W (17.70mm x 12.85mm) | Shielding | Unshielded |
| Series | CTX | Ratings | - |
| Q @ Freq | - | Packaging | Cut Tape (CT) |
| Package / Case | Nonstandard | Other Names | 513-1539-1 |
| Operating Temperature | -40°C ~ 150°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Iron Powder |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 100kHz |
| Inductance | 120µH | Height - Seated (Max) | 0.297" (7.55mm) |
| Frequency - Self Resonant | - | Detailed Description | 120µH Unshielded Toroidal Inductor 2A 62 mOhm Max Nonstandard |
| DC Resistance (DCR) | 62 mOhm Max | Current Rating | 2A |
| Current - Saturation | 1.7A |
