SRR1806-101M

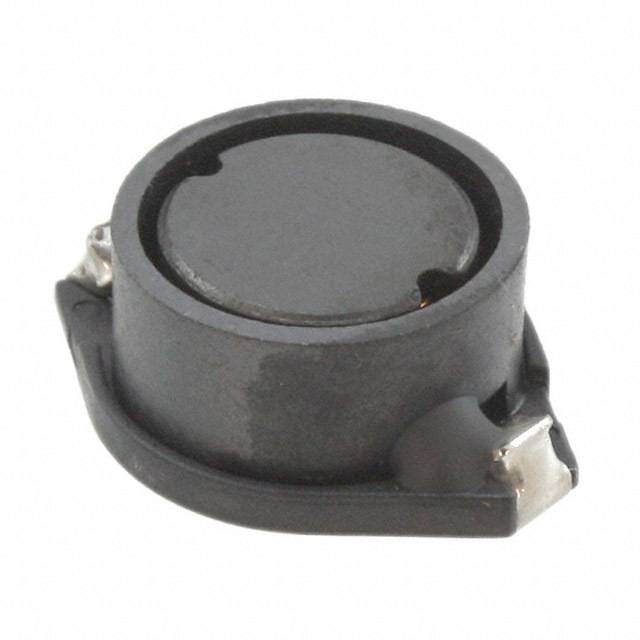

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SRR1806-101M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SRR1806-101M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SRR1806-101M |
|---|---|
| Manufacturer | Bourns, Inc. |
| Description | FIXED IND 100UH 1.3A 270 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 250 pcs | 500 pcs | 750 pcs | 1250 pcs | |
|---|---|---|---|---|---|
| $0.225 | $0.193 | $0.182 | $0.171 | ||
| 2500 pcs | 6250 pcs | 12500 pcs | |||
| $0.166 | $0.161 | $0.155 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SRR1806-101M | Manufacturer | Bourns, Inc. |
|---|---|---|---|
| Description | FIXED IND 100UH 1.3A 270 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 144435 pcs | Data sheet | SSR1806 Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.720" L x 0.551" W (18.30mm x 14.00mm) | Shielding | Shielded |
| Series | SRR1806 | Ratings | - |
| Q @ Freq | 40 @ 796kHz | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | SRR1806-101M-ND SRR1806-101MTR SRR1806101M |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 100µH |
| Height - Seated (Max) | 0.280" (7.10mm) | Frequency - Self Resonant | 4.6MHz |
| Detailed Description | 100µH Shielded Wirewound Inductor 1.3A 270 mOhm Nonstandard | DC Resistance (DCR) | 270 mOhm |
| Current Rating | 1.3A | Current - Saturation | 2.6A |
