SRP1265A-2R2M

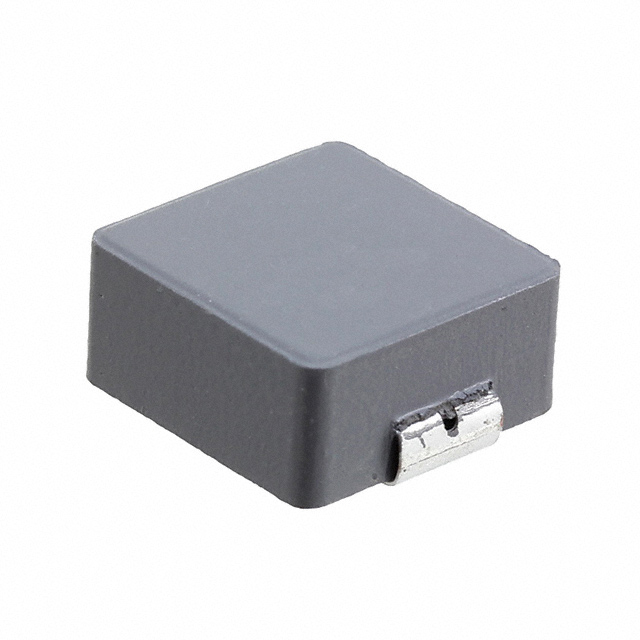

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SRP1265A-2R2M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SRP1265A-2R2M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SRP1265A-2R2M |
|---|---|
| Manufacturer | Bourns, Inc. |
| Description | FIXED IND 2.2UH 22A 4.2 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | 12500 pcs |
|---|---|---|---|---|---|
| $0.272 | $0.242 | $0.234 | $0.227 | $0.219 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | SRP1265A-2R2M | Manufacturer | Bourns, Inc. |
|---|---|---|---|
| Description | FIXED IND 2.2UH 22A 4.2 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 99781 pcs | Data sheet | SRP Series BulletinSRP1265A Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.531" L x 0.492" W (13.50mm x 12.50mm) | Shielding | Shielded |
| Series | SRP1265A | Ratings | AEC-Q200 |
| Q @ Freq | 20 @ 100kHz | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | SRP1265A-2R2MTR |
| Operating Temperature | -40°C ~ 150°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Carbonyl Powder |
| Manufacturer Standard Lead Time | 20 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 2.2µH |
| Height - Seated (Max) | 0.252" (6.40mm) | Frequency - Self Resonant | 23MHz |
| Detailed Description | 2.2µH Shielded Wirewound Inductor 22A 4.2 mOhm Max Nonstandard | DC Resistance (DCR) | 4.2 mOhm Max |
| Current Rating | 22A | Current - Saturation | 37A |
