SRP1245A-R56M

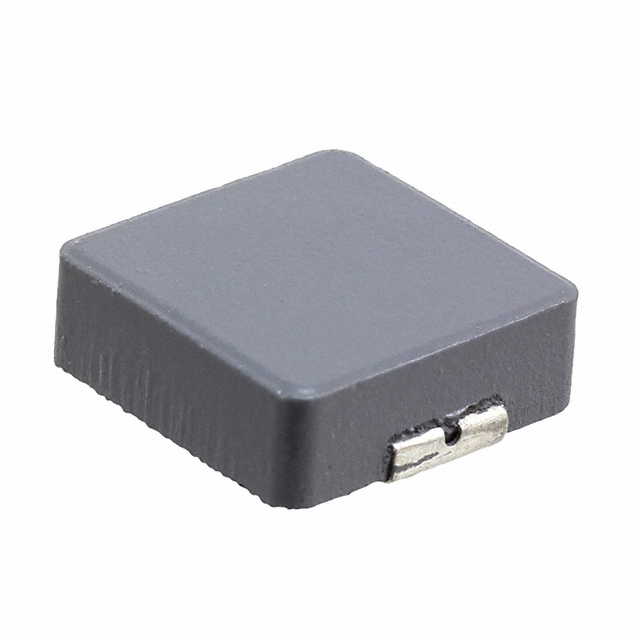

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SRP1245A-R56M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SRP1245A-R56M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SRP1245A-R56M |
|---|---|
| Manufacturer | Bourns, Inc. |
| Description | FIXED IND 560NH 36A 1.5 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.61 | $0.565 | $0.395 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SRP1245A-R56M | Manufacturer | Bourns, Inc. |
|---|---|---|---|
| Description | FIXED IND 560NH 36A 1.5 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 84057 pcs | Data sheet | SRP Series BulletinSRP1245A Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.531" L x 0.492" W (13.50mm x 12.50mm) | Shielding | Shielded |
| Series | SRP1245A | Ratings | AEC-Q200 |
| Q @ Freq | 20 @ 100kHz | Packaging | Cut Tape (CT) |
| Package / Case | Nonstandard | Other Names | SRP1245A-R56MCT |
| Operating Temperature | -40°C ~ 150°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Carbonyl Powder |
| Manufacturer Standard Lead Time | 20 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 560nH |
| Height - Seated (Max) | 0.197" (5.00mm) | Frequency - Self Resonant | 60MHz |
| Detailed Description | 560nH Shielded Wirewound Inductor 36A 1.5 mOhm Max Nonstandard | DC Resistance (DCR) | 1.5 mOhm Max |
| Current Rating | 36A | Current - Saturation | 55A |
