SRF1260A-101M

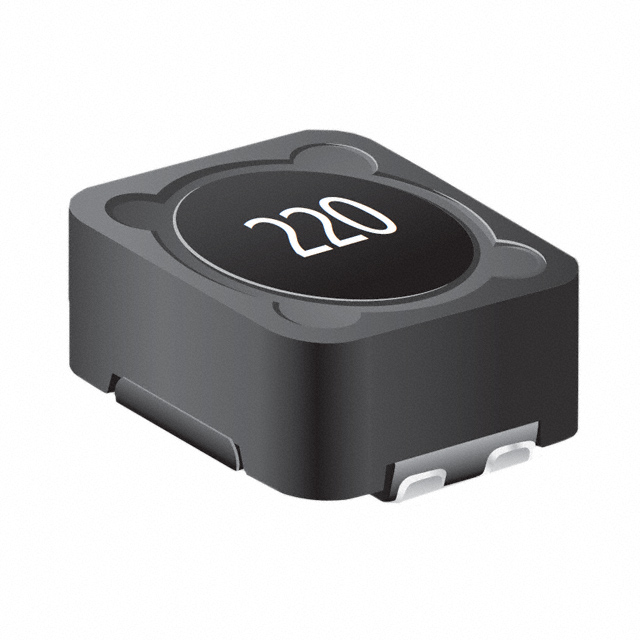

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SRF1260A-101M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SRF1260A-101M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SRF1260A-101M |
|---|---|
| Manufacturer | Bourns, Inc. |
| Description | INDUCT ARRAY 2 COIL 100UH SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1600 pcs | ||||
|---|---|---|---|---|---|
| $0.209 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SRF1260A-101M | Manufacturer | Bourns, Inc. |
|---|---|---|---|
| Description | INDUCT ARRAY 2 COIL 100UH SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 104845 pcs | Data sheet | SRF1260A Series |
| Category | Inductors, Coils, Chokes | Tolerance | ±20% |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Shielding | Shielded |
| Series | SRF1260A | Ratings | AEC-Q200 |
| Packaging | Tape & Reel (TR) | Package / Case | Nonstandard |
| Other Names | SRF1260A-101M-ND SRF1260A-101MTR |
Operating Temperature | -40°C ~ 125°C |
| Number of Coils | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 18 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance - Connected In Series | 400µH |
| Inductance - Connected In Parallel | 100µH | Height | 0.244" (6.20mm) |
| Detailed Description | Shielded 2 Coil Inductor Array 400µH Inductance - Connected in Series 100µH Inductance - Connected in Parallel 171 mOhm Max DC Resistance (DCR) - Parallel 1.78A Nonstandard | DC Resistance (DCR) - Series | 656 mOhm Max |
| DC Resistance (DCR) - Parallel | 171 mOhm Max | Current Saturation - Series | 1.1A |
| Current Saturation - Parallel | 2.2A | Current Rating - Series | 892mA |
| Current Rating - Parallel | 1.78A |
