SRF0703A-680M

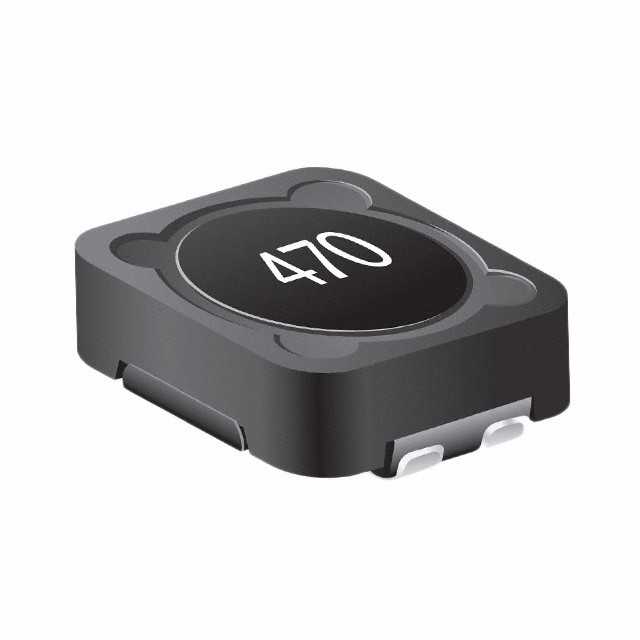

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SRF0703A-680M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SRF0703A-680M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SRF0703A-680M |
|---|---|
| Manufacturer | Bourns, Inc. |
| Description | INDUCT ARRAY 2 COIL 68UH SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1500 pcs | 3000 pcs | 7500 pcs | 10500 pcs | |
|---|---|---|---|---|---|
| $0.156 | $0.151 | $0.146 | $0.141 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SRF0703A-680M | Manufacturer | Bourns, Inc. |
|---|---|---|---|
| Description | INDUCT ARRAY 2 COIL 68UH SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 150374 pcs | Data sheet | SRF0703A Series |
| Category | Inductors, Coils, Chokes | Tolerance | ±20% |
| Size / Dimension | 0.299" L x 0.299" W (7.60mm x 7.60mm) | Shielding | Shielded |
| Series | SRF0703A | Ratings | AEC-Q200 |
| Packaging | Tape & Reel (TR) | Package / Case | Nonstandard |
| Other Names | SRF0703A-680MTR | Operating Temperature | -40°C ~ 125°C |
| Number of Coils | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 18 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance - Connected In Series | 289.3µH |
| Inductance - Connected In Parallel | 68µH | Height | 0.142" (3.60mm) |
| Detailed Description | Shielded 2 Coil Inductor Array 289.3µH Inductance - Connected in Series 68µH Inductance - Connected in Parallel 507 mOhm Max DC Resistance (DCR) - Parallel 890mA Nonstandard | DC Resistance (DCR) - Series | 1.92 Ohm Max |
| DC Resistance (DCR) - Parallel | 507 mOhm Max | Current Saturation - Series | 480mA |
| Current Saturation - Parallel | 960mA | Current Rating - Series | 444mA |
| Current Rating - Parallel | 890mA |
