SRF0703-3R3M

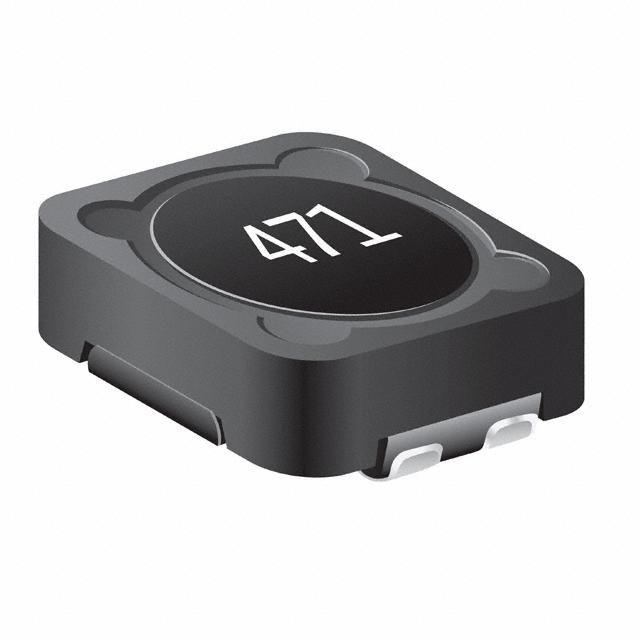

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SRF0703-3R3M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SRF0703-3R3M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SRF0703-3R3M |
|---|---|
| Manufacturer | Bourns, Inc. |
| Description | INDUCT ARRAY 2 COIL 3.3UH SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1500 pcs | 3000 pcs | 7500 pcs | 10500 pcs | |
|---|---|---|---|---|---|
| $0.137 | $0.132 | $0.128 | $0.124 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SRF0703-3R3M | Manufacturer | Bourns, Inc. |
|---|---|---|---|
| Description | INDUCT ARRAY 2 COIL 3.3UH SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 154244 pcs | Data sheet | SRF0703 Series |
| Category | Inductors, Coils, Chokes | Tolerance | ±20% |
| Size / Dimension | 0.299" L x 0.299" W (7.60mm x 7.60mm) | Shielding | Shielded |
| Series | SRF0703 | Ratings | - |
| Packaging | Tape & Reel (TR) | Package / Case | Nonstandard |
| Other Names | SRF0703-3R3MTR SRF07033R3M |
Operating Temperature | -40°C ~ 125°C |
| Number of Coils | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 18 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance - Connected In Series | 13.2µH |
| Inductance - Connected In Parallel | 3.3µH | Height | 0.142" (3.60mm) |
| Detailed Description | Shielded 2 Coil Inductor Array 13.2µH Inductance - Connected in Series 3.3µH Inductance - Connected in Parallel 31.6 mOhm Max DC Resistance (DCR) - Parallel 3.31A Nonstandard | DC Resistance (DCR) - Series | 182 mOhm Max |
| DC Resistance (DCR) - Parallel | 31.6 mOhm Max | Current Saturation - Series | 2.11A |
| Current Saturation - Parallel | 4.22A | Current Rating - Series | 1.66A |
| Current Rating - Parallel | 3.31A |
