SDR2207-R78ML

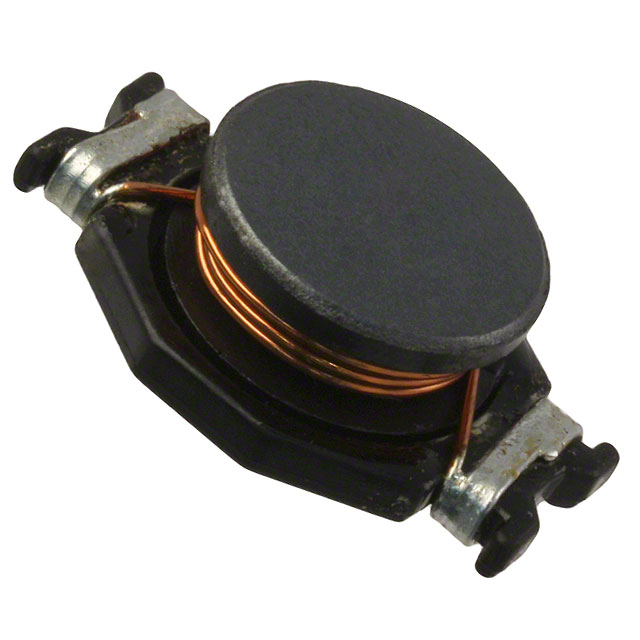

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SDR2207-R78ML with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SDR2207-R78ML with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SDR2207-R78ML |
|---|---|
| Manufacturer | Bourns, Inc. |
| Description | FIXED IND 780NH 15A 2.6 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 250 pcs | ||||
|---|---|---|---|---|---|
| $0.253 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SDR2207-R78ML | Manufacturer | Bourns, Inc. |
|---|---|---|---|
| Description | FIXED IND 780NH 15A 2.6 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 88247 pcs | Data sheet | SDR2207 Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.866" L x 0.591" W (22.00mm x 15.00mm) | Shielding | Unshielded |
| Series | SDR2207 | Ratings | - |
| Q @ Freq | 30 @ 5MHz | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Core | Ferrite | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 100kHz |
| Inductance | 780nH | Height - Seated (Max) | 0.307" (7.80mm) |
| Frequency - Self Resonant | 104MHz | Detailed Description | 780nH Unshielded Wirewound Inductor 15A 2.6 mOhm Max Nonstandard |
| DC Resistance (DCR) | 2.6 mOhm Max | Current Rating | 15A |
| Current - Saturation | 30A |
