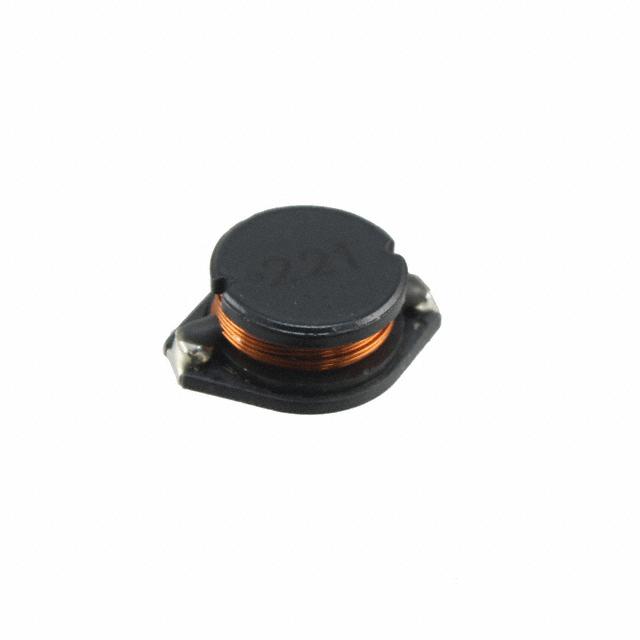

SDR1806-221KL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SDR1806-221KL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SDR1806-221KL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SDR1806-221KL |
|---|---|
| Manufacturer | Bourns, Inc. |
| Description | FIXED IND 220UH 1.1A 420 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 250 pcs | 500 pcs | 750 pcs | 1250 pcs | |
|---|---|---|---|---|---|
| $0.215 | $0.185 | $0.174 | $0.164 | ||
| 2500 pcs | 6250 pcs | 12500 pcs | 25000 pcs | ||
| $0.159 | $0.154 | $0.149 | $0.144 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SDR1806-221KL | Manufacturer | Bourns, Inc. |
|---|---|---|---|
| Description | FIXED IND 220UH 1.1A 420 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 133617 pcs | Data sheet | SDR1806 Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±10% | Supplier Device Package | - |
| Size / Dimension | 0.720" L x 0.551" W (18.30mm x 14.00mm) | Shielding | Unshielded |
| Series | SDR1806 | Ratings | - |
| Q @ Freq | 20 @ 796kHz | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | SDR1806-221KL-ND SDR1806-221KLTR SDR1806221KL |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 220µH |
| Height - Seated (Max) | 0.272" (6.90mm) | Frequency - Self Resonant | 4.5MHz |
| Detailed Description | 220µH Unshielded Wirewound Inductor 1.1A 420 mOhm Max Nonstandard | DC Resistance (DCR) | 420 mOhm Max |
| Current Rating | 1.1A | Current - Saturation | 2.2A |
