SDR0503-100M

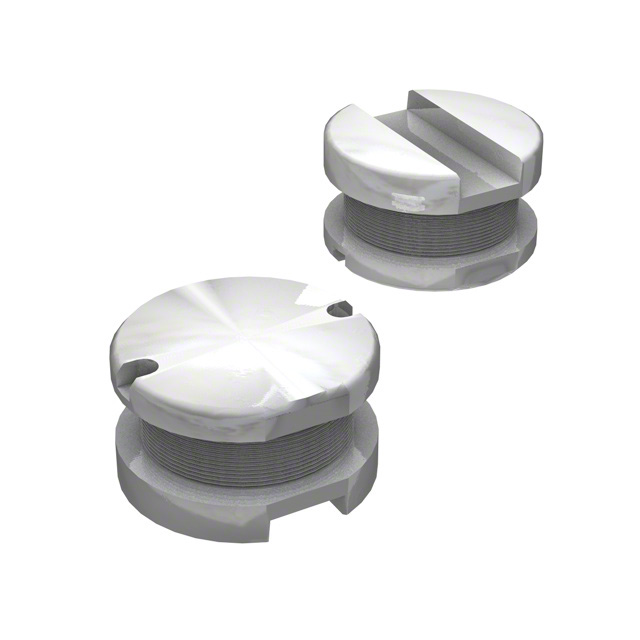

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SDR0503-100M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SDR0503-100M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SDR0503-100M |
|---|---|
| Manufacturer | Bourns, Inc. |
| Description | FIXED IND 10UH 1.3A 130 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SDR0503-100M | Manufacturer | Bourns, Inc. |
|---|---|---|---|
| Description | FIXED IND 10UH 1.3A 130 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4490 pcs | Data sheet | SDR0503 Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.197" L x 0.189" W (5.00mm x 4.80mm) | Shielding | Unshielded |
| Series | SDR0503 | Ratings | - |
| Q @ Freq | 10 @ 2.52MHz | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Core | Ferrite | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 1kHz | Inductance | 10µH |
| Height - Seated (Max) | 0.130" (3.30mm) | Frequency - Self Resonant | 30MHz |
| Detailed Description | 10µH Unshielded Wirewound Inductor 1.3A 130 mOhm Max Nonstandard | DC Resistance (DCR) | 130 mOhm Max |
| Current Rating | 1.3A | Current - Saturation | 1.6A |
